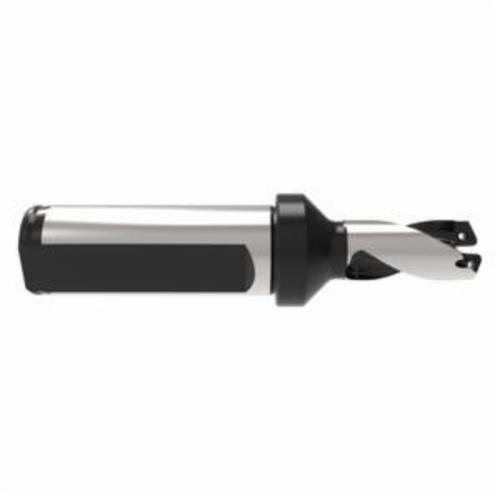

SERIES 13 GEN3SYS XT DRILL INSERT HOLDER
SERIES 13 GEN3SYS XT DRILL INSERT HOLDER
AME60113H-20FM
60113H-20FM
298.00
/ EA
http://schema.org/OutOfStock
/Product/AME60113H-20FM
- Overall Length Decimal Inch: 93
- Overall Length Metric: 2362.2
- Series: 13 Series
- Shank Diameter Decimal Inch: 0.787
- Shank Diameter Metric: 20
- Shank Type: Flanged with Flat
- Type: Helical Flute Replaceable Stub Length
- Coolant Hole Thread: 1/8in BSP Rear
- Country of Origin: US
- Drill Body Length: 43mm
- Drill Depth: 16mm
- Drill Depth by Diameter Ratio: 1XD
- Drilling Capacity: 13 to 13.99mm
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Allied Machine & Engineering
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
