KYOCERA PRECISION TOOLS

S150DRZ20001000015G INSERT DRILL

S150DRZ20001000015G INSERT DRILL

KYOCTHD89025 THD89025
1157.66 / EA
http://schema.org/OutOfStock

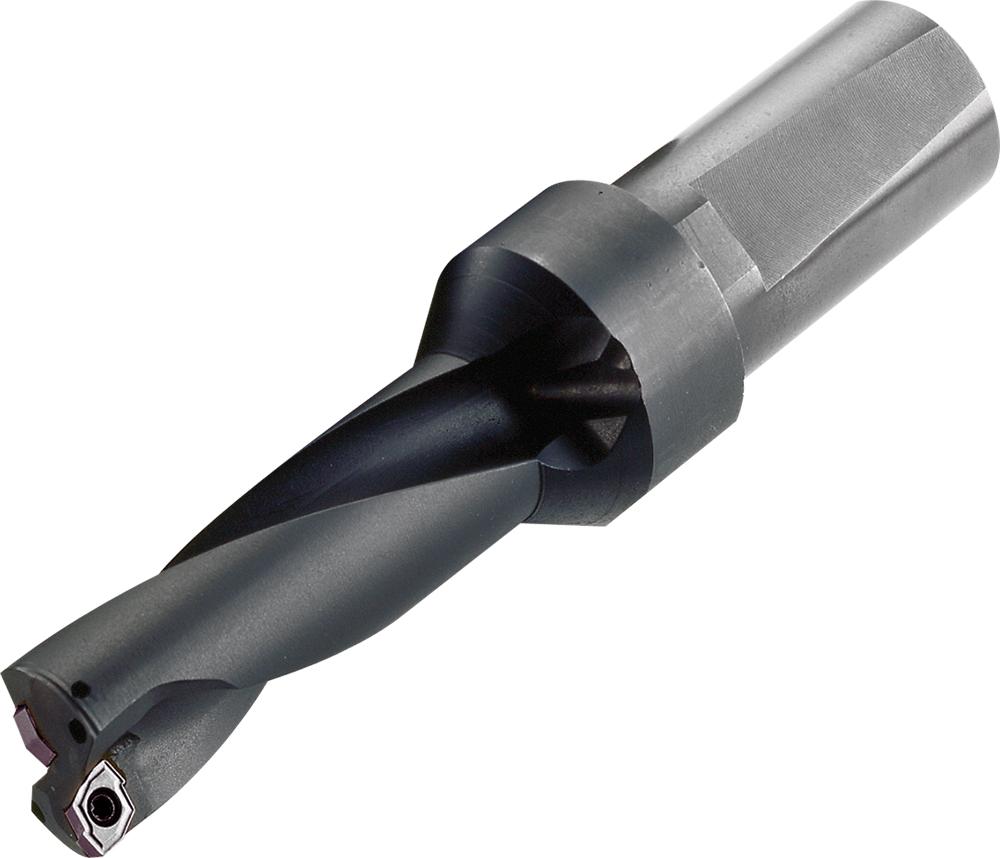

S150DRZ20001000015G INSERT DRILL
  • Drill Depth by Diameter Ratio: 5XD
  • Flute Length Decimal Inch: 10
  • Flute Length Fractional Inch: 10
  • Flute Length Metric: 254
  • Insert Style: ZCMT, ZCMT150406/ZCMT150408
  • Manufacturer Name: KYOCERA Precision Tools
  • Maximum Drill Depth: 10 in
  • Number of Drill Inserts: 2
  • Overall Length Decimal Inch: 14.63
  • Overall Length Metric: 371.602
  • Series: MagicDrill DRZ
  • Shank Diameter Decimal Inch: 1.5
  • Shank Diameter Fractional Inch: 1-1/2
  • Shank Type: Whistle Notch
  • Through Coolant (Yes/No): Yes
  • Type: Indexable
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Drilling
  • Cost reduction by using an insert with 4 corners
  • Special edge design to divide the chip into 3 pieces
  • Sharp cutting performance to prevent chattering
  • Good surface finish
  • Good chip evacuation, silent drilling and low cutting force design
ANSI
