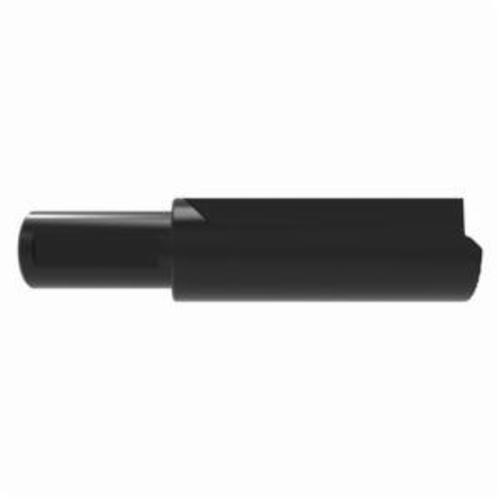

2.0"-2.2" REV. 2.2XD REV DRILL HOLDER
2.0"-2.2" REV. 2.2XD REV DRILL HOLDER
AMESP36X22-40M
SP36X22-40M
932.00
/ EA
http://schema.org/OutOfStock
/Product/AMESP36X22-40M
- Drill Depth by Diameter Ratio: 2.2XD
- Manufacturer Name: Allied Machine & Engineering
- Overall Length Decimal Inch: 217.6
- Overall Length Metric: 5527.04
- Series: SP36
- Shank Diameter Decimal Inch: 1.575
- Shank Diameter Metric: 40
- Shank Type: Straight
- Type: Stacked Plate Straight Flute
- Coolant Hole Thread: 1/4in BSP
- Country of Origin: US
- Drill Body Length: 147.6mm
- Drill Depth: 124mm
- Drilling Capacity: 50.8 to 55.9mm
- Has Attributes: Yes
- Has Image: Yes
The Revolution Drill® is an extremely effective tool designed to drill large diameter holes on low horse power machines while maintaining high penetration rates. Excellent for a variety of applications including stacked plates.
- Item Features
- Drills from solid with no pilot required or can open an existing hole while ignoring core shifts up to 1/8 in
- Ideal on low horsepower machines while maintaining high penetration rates
- Multi-insert design reduces chip size for easy chip evacuation
- Diameter adjustment reduces inventory and cost
- Adjustable up to 0.2 in on diameter
- Available for stack plate applications
- Replaceable and adjustable cartridges
- Indexable inserts available in AM300® and AM200® coatings as well as high rake and general purpose geometries
- Integral shanks available for increased rigidity
