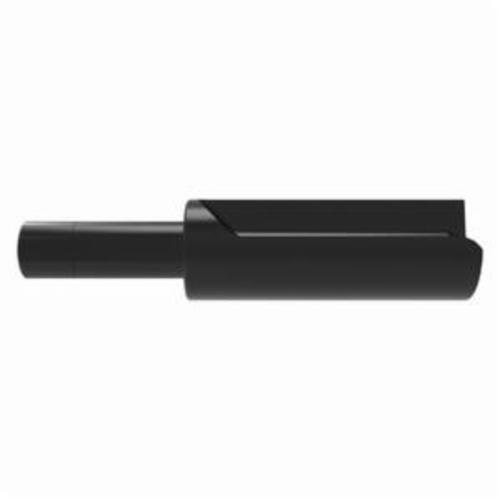

2.6"-2.8" REV x 2.2XD R34 DRILL HOLDER
2.6"-2.8" REV x 2.2XD R34 DRILL HOLDER
AMER44X22-150L
R44X22-150L
1191.00
/ EA
http://schema.org/OutOfStock
/Product/AMER44X22-150L
- Drill Depth by Diameter Ratio: 2.2XD
- Manufacturer Name: Allied Machine & Engineering
- Overall Length Decimal Inch: 11.5
- Overall Length Fractional Inch: 11-1/2
- Overall Length Metric: 292.1
- Series: R44
- Shank Diameter Decimal Inch: 1.5
- Shank Diameter Fractional Inch: 1-1/2
- Shank Type: Straight
- Type: Standard Length Straight Flute
- Coolant Hole Thread: 1/4in NPT
- Country of Origin: US
- Drill Body Length: 7-1/2in
- Drill Depth: 6-13/64in
- Drilling Capacity: 2.6 to 2.8in
- Has Attributes: Yes
- Has Image: Yes
The Revolution Drill® is an extremely effective tool designed to drill large diameter holes on low horse power machines while maintaining high penetration rates. Excellent for a variety of applications including stacked plates.
- Application
- Item Features
Aerospace, Agriculture, Automotive, General Production, Marine, Renewable Energy/Energy, Oil and Gas
- Drills from solid with no pilot required or can open an existing hole while ignoring core shifts up to 1/8 in
- Ideal on low horsepower machines while maintaining high penetration rates
- Multi-insert design reduces chip size for easy chip evacuation
- Diameter adjustment reduces inventory and cost
- Adjustable up to 0.2 in on diameter
- Available for stack plate applications
- Replaceable and adjustable cartridges
- Indexable inserts available in AM300® and AM200® coatings as well as high rake and general purpose geometries
- Integral shanks available for increased rigidity
