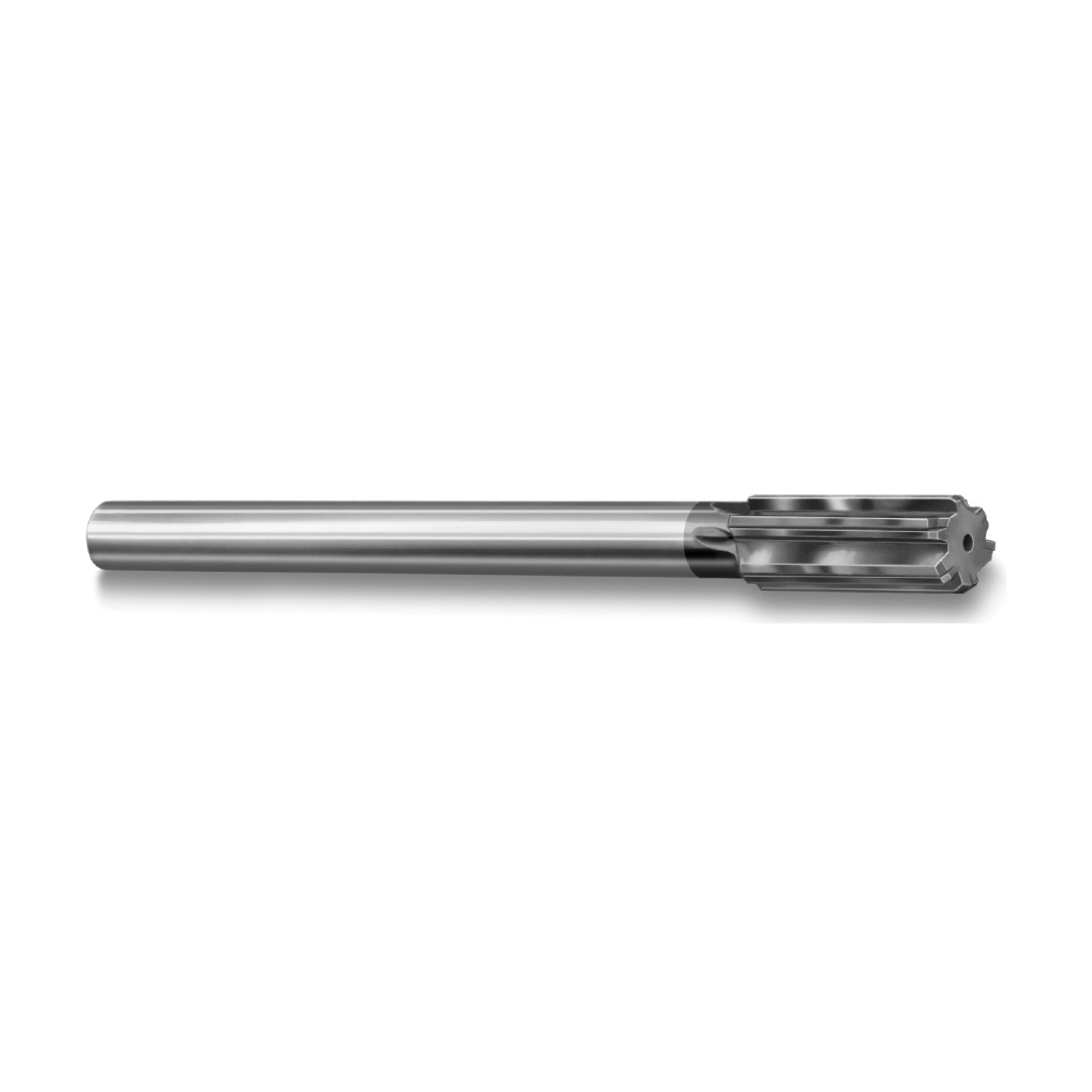

#800 3/16" .1875 4FL STR FL CARBIDE REAMER
#800 3/16" .1875 4FL STR FL CARBIDE REAMER
HCT80012
80012
68.00
/ EA
http://schema.org/OutOfStock
/Product/HCT80012
- Applicable Materials: Cast Iron, Steel and High Temperature Alloy
- Cutter Diameter Decimal Inch: 0.1875
- Cutter Diameter Fractional Inch: 3/16
- Cutter Diameter Metric: 4.762
- Flute Length Decimal Inch: 1.125
- Flute Length Fractional Inch: 1-1/8
- Flute Length Metric: 28.575
- Flute Type: Straight
- Material: Solid Carbide
- Number of Flutes: 4
- Overall Length Decimal Inch: 4.5
- Overall Length Fractional Inch: 4-1/2
- Overall Length Metric: 114.3
- Series: 800F
- Shank Diameter Decimal Inch: 0.1724
- Shank Type: Straight
- Surface Treatment: Polished
- Type: Material Specific
- Has Attributes: Yes
- Has Image: Yes
- Item Features
- The reamer is used to finish machine a previously formed hole to an exact diameter with a smooth finish
- Carbide tipped reamers are especially appropriate for close tolerance reaming - because carbide is very highly resistant to wear, the reamer will produce accurate hole size and a smooth finish far longer than high speed steel or cobalt
- The reamer is an end cutting tool, cutting only on the chamfer's edge at the outside diameter of the preformed hole
- Geometry and carbide grade appropriate for material being machined
- Higher feeds and speeds due to heat resistant cutting edge - reduces machine cycle time per part
- Consistent quality - maintains hole size and surface finish far longer
- Longer tool life - reduces down time for tool changes
- Excellent in large production runs due to material specific carbide and tool geometry
- Polished flutes for easy chip flow
- Precision ground cutting edges
- The standard 45 deg chamfer angle provides effective cutting action for most materials
- -0.001 in shank diameter tolerance
- 0.0002 in tool diameter tolerance
