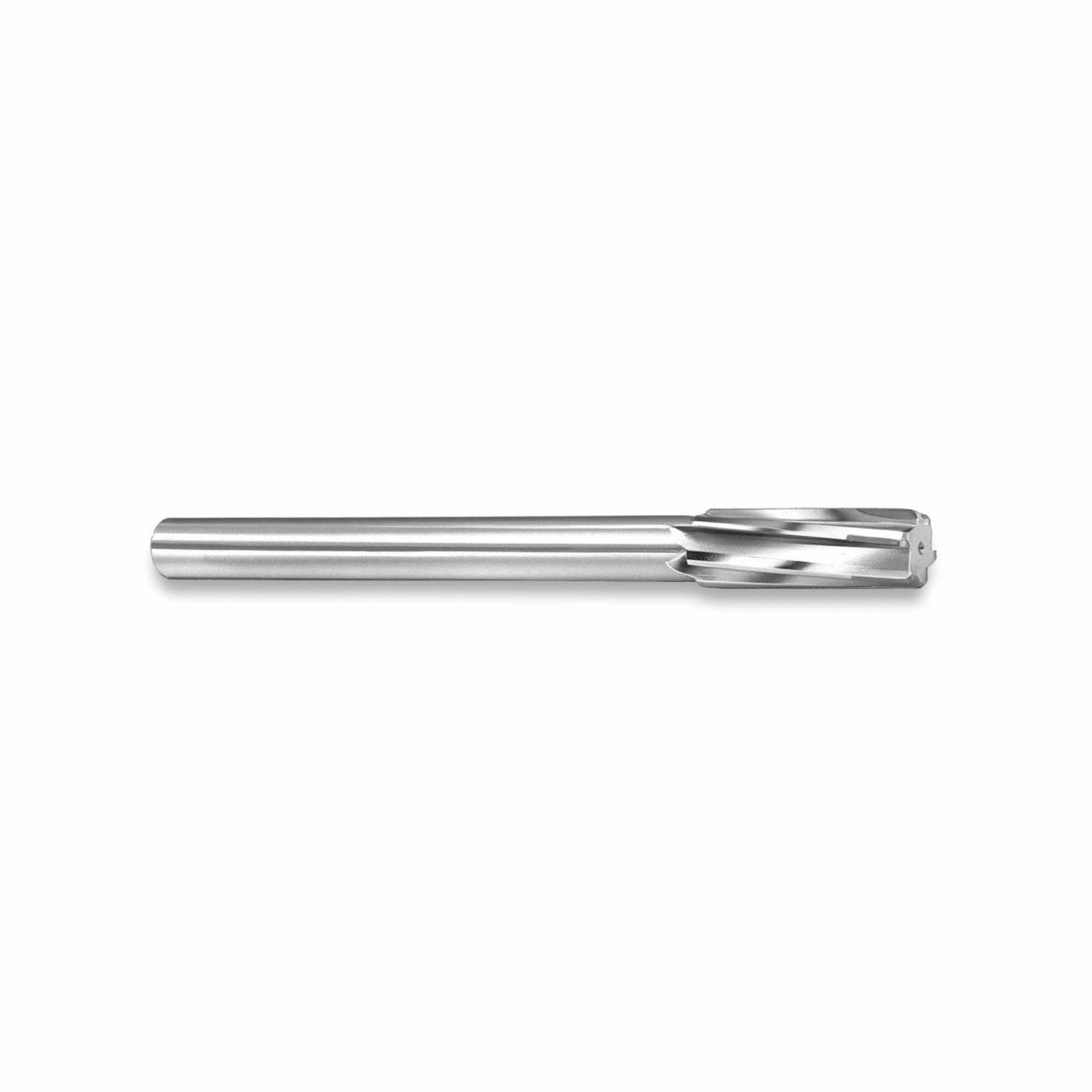

#410 3/16" .1875 CARBIDE TIPPED REAMER
#410 3/16" .1875 CARBIDE TIPPED REAMER
HCT41006
41006
66.35
/ EA
http://schema.org/OutOfStock
/Product/HCT41006
- Applicable Materials: Cast Iron, Steel and Non-Ferrous Metal
- Cutter Diameter Decimal Inch: 0.1875
- Cutter Diameter Fractional Inch: 3/16
- Cutter Diameter Metric: 4.762
- Flute Length Decimal Inch: 1.125
- Flute Length Fractional Inch: 1-1/8
- Flute Length Metric: 28.575
- Flute Type: Right Spiral
- Material: Carbide Tip/Steel Body
- Number of Flutes: 4
- Overall Length Decimal Inch: 4.5
- Overall Length Fractional Inch: 4-1/2
- Overall Length Metric: 114.3
- Series: 410F
- Shank Diameter Decimal Inch: 0.171875
- Shank Diameter Fractional Inch: 11/64
- Shank Type: Straight
- Surface Treatment: Polished
- Type: General Purpose
- Has Attributes: Yes
- Has Image: Yes
- Item Features
- The reamer is used to finish machine a previously formed hole to an exact diameter with a smooth finish
- Carbide tipped reamers are especially appropriate for close tolerance reaming - because carbide is very highly resistant to wear, the reamer will produce accurate hole size and a smooth finish far longer than high speed steel or cobalt
- The reamer is an end cutting tool, cutting only on the chamfer's edge at the outside diameter of the preformed hole
- The standard 45 deg chamfer angle provides effective cutting action for most materials
- Higher feeds and speeds due to heat resistant cutting edge - reduces machine cycle time per part
- Consistent quality - maintains hole size and surface finish far longer
- Longer tool life - reduces down time for tool changes
- Tool geometry and carbide grade appropriate for material being machined
- Carbide tips brazed to tough hardened alloy steel body
- Polished flutes for easy chip flow
- Precision ground cutting edges
- Right spiral flutes have greater chip clearing ability for use with ductile materials, highly abrasive materials or blind holes
- Finishes are much better as spiral flutes tend to bridge interruptions such as keyways, slots or intersecting holes
- Superior performance over high speed steel and cobalt - good in a wide variety of materials
