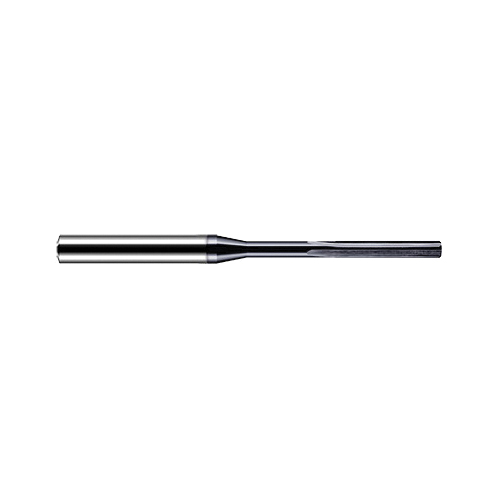

.0185" DIA 4FL CARBIDE REAMER

.0185" DIA 4FL CARBIDE REAMER

HATLRSB0185-C3 RSB0185-C3
65.70 / EA
http://schema.org/OutOfStock
.0185" DIA 4FL CARBIDE REAMER
  • Cutter Diameter Decimal Inch: 0.0185
  • Cutter Diameter Metric: 0.47
  • Flute Length Decimal Inch: 0.14
  • Flute Length Metric: 3.556
  • Flute Type: Straight
  • Material: Solid Carbide
  • Number of Flutes: 4
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Surface Treatment: AlTiN Coated
  • Type: Imperial Miniature
  • Body Diameter Decimal Inch: 0.125
  • Body Diameter Fractional Inch: 1/8
  • Body Diameter Metric: 3.175
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Harvey Tool
QTY
Add to List
  • Item Features
  • Tolerance for AlTiN coating is +0.0002/-0.0000 in
  • AlTiN coated for improved lubricity and heat-resistance
  • Straight flutes for through and blind hole applications
  • Oversized, common shanks to maintain strength, stiffness and accuracy
  • 45 deg chamfer angle
  • h6 shank tolerance for high precision tool holders
