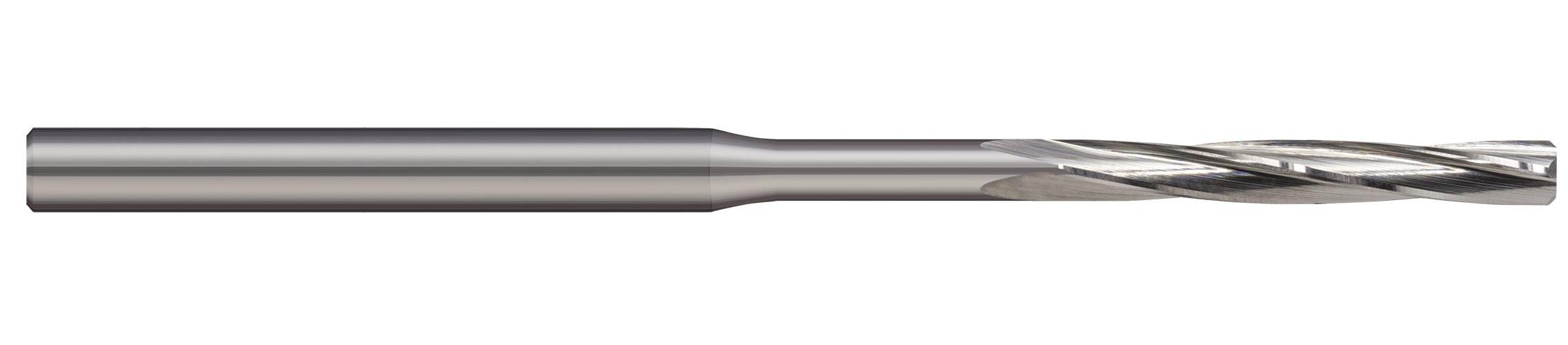

.0100x.125 SPIRAL REAMER 4FL

.0100x.125 SPIRAL REAMER 4FL

HATLRRH0100 RRH0100
65.20 / EA
http://schema.org/OutOfStock
.0100x.125 SPIRAL REAMER 4FL
  • Applicable Materials: Non-Ferrous Metal/Cast Iron/Steel/Stainless Steel/Wood/Composites
  • Cutter Diameter Decimal Inch: 0.01
  • Cutter Diameter Fractional Inch: 1/64
  • Cutter Diameter Metric: 0.254
  • Flute Length Decimal Inch: 0.078
  • Flute Length Fractional Inch: 5/64
  • Flute Length Metric: 1.981
  • Flute Type: Spiral
  • Hand Direction: Right Hand
  • Material: Solid Carbide
  • Number of Flutes: 4
  • Overall Length Decimal Inch: 1.5
  • Overall Length Fractional Inch: 1-1/2
  • Overall Length Metric: 38.1
  • Shank Diameter Decimal Inch: 0.125
  • Shank Diameter Fractional Inch: 1/8
  • Shank Type: Cylindrical
  • Surface Treatment: UNCOATED
  • Angle Per Side: 45°
  • Center Cutting: No
  • Chamfer Length: 0.0017in
  • Chipbreaker: No
  • Country of Origin: US
  • Drill Size Number: #87
  • Has Attributes: Yes
  • Has Image: Yes
  • Included Angle: 90°
  • Manufacturer Name: Harvey Tool
  • Margin Length: 0.078in
  • Neck Diameter: 0.0092in
  • Overall Reach: 0.125in
  • Reach Multiple: 12X
QTY
Add to List
  • Standards
PROP65: This product contains chemicals known to the State of California to cause cancer
