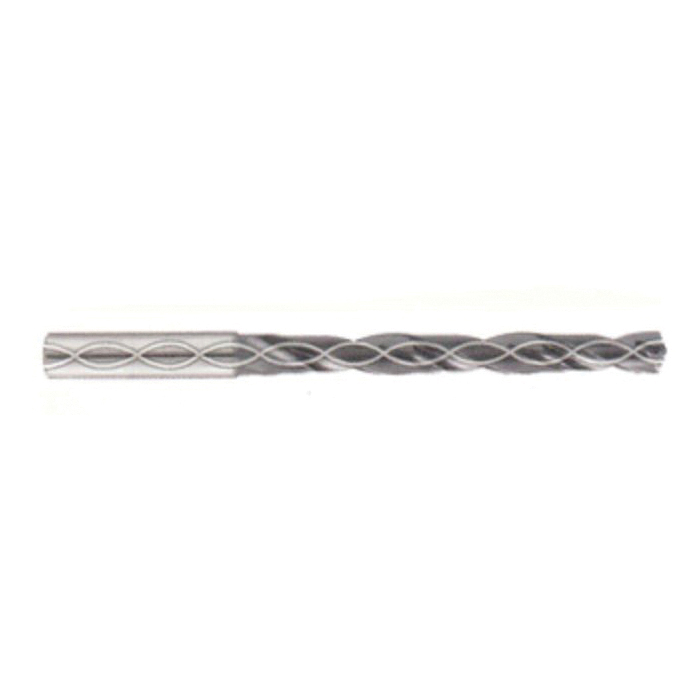

11.9mm x71x118mm Carbide
11.9mm x71x118mm Carbide
YGTCDH452119
DH452119
196.49
/ EA
http://schema.org/OutOfStock
/Product/YGTCDH452119
- Cutting Depth: 5XD
- Drill Size Fractional Inch: 15/32
- Drill Size Metric: 11.9
- Flute Length Decimal Inch: 2.795
- Flute Length Metric: 71
- Flute Type: Slow Spiral
- Hand Direction: Right Hand
- Included Angle: 140°
- Material: Micro Grain Carbide
- Overall Length Decimal Inch: 118
- Overall Length Metric: 2997.2
- Point Type: Split
- Series: DH452
- Shank Size: 12mm
- Shank Type: Straight
- Surface Treatment: TiAlN Coated
- Type: Long Length
- Applicable Materials: Stainless Steel
- Drill Size Decimal Inch: 0.4685, 0.469
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Item Features
- Standards
- The tool has the special flute shape and geometry for suitable machining of stainless steel
- Excellent chip evacuation due to better surface treatment
- Point R thinning makes the superior centering and chip curl
- TiAlN coating achieves the better surface finishes and longer tool life
DIN 6537
