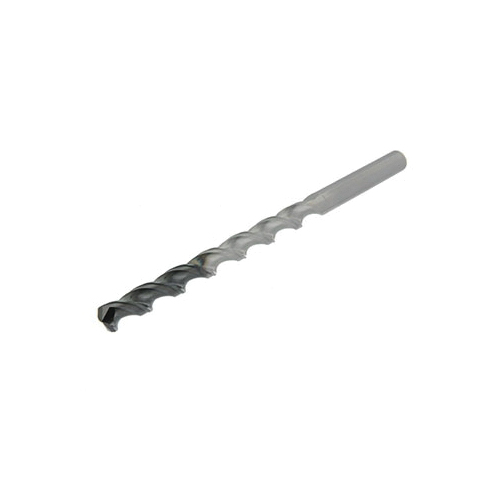

3.4MM20xD HELIOS DRILL
3.4MM20xD HELIOS DRILL
OSG8623234
8623234
77.95
/ EA
http://schema.org/OutOfStock
/Product/OSG8623234
- Cutting Depth: 20XD
- Drill Size Metric: 3.4
- Flute Length Decimal Inch: 3.15
- Flute Length Metric: 80
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 120°
- Material: Carbide
- Number of Flutes: 2
- Overall Length Decimal Inch: 130
- Overall Length Metric: 3302
- Point Type: Standard
- Series: HELIOS® 1770
- Shank Size: 3.4mm
- Shank Type: Straight
- Surface Treatment: WXL® Coated
- Type: High Performance
- Color: Black Gray
- Drill Size Decimal Inch: 0.13386, 0.134
- Has Attributes: Yes
- Has Image: Yes
Drills are used to make holes in a wide range of surfaces. OSG has received high acclaim for the development of high precision, high value added products for its use in automotive and aircraft part manufacture, which demands advanced processing techniques and zero margin of error.
- Item Features
- Standards
- Long flute lengths with stable chip evacuation for deep hole drilling
- Patented low-resistance web thinning reduces penetration force by as much as 35%
- OSG WD1 nano coating technology higher coating oxidation temperature and hardness dramatically improve wear-resistance
- Patented flat flute form looks like parabolic, but isn't this flute form ensures extra space while increasing chip evacuation velocity
- Patented compound flute construction ensure chips curl tightly and move freely through the flutes to ensure stable evacuation
- High performance deep hole drilling without through coolant
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
