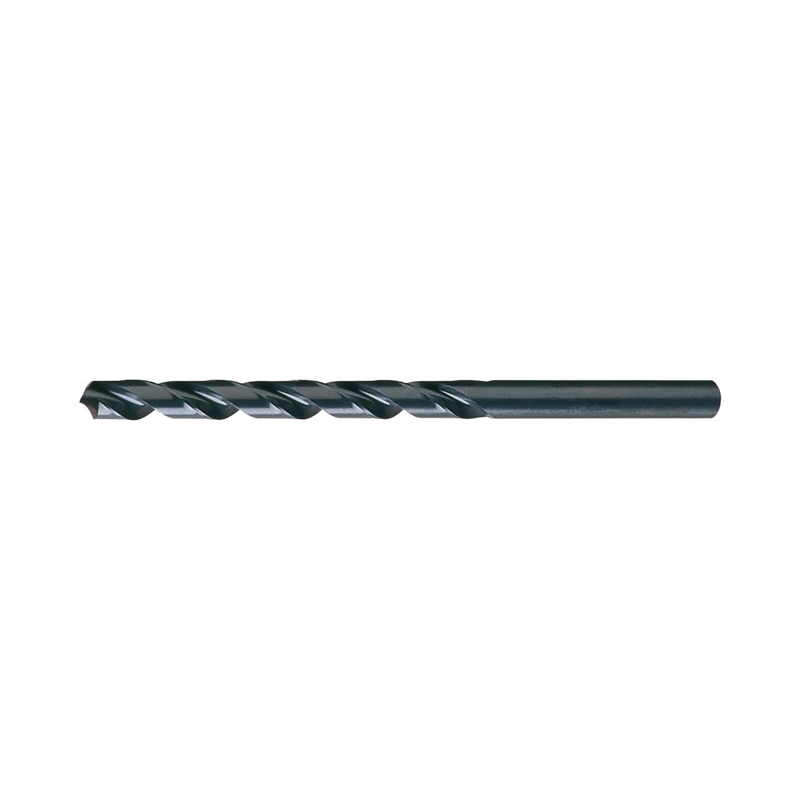

53/64 DRILL,TAPER LENGTH
53/64 DRILL,TAPER LENGTH
CHL49753
49753
95.09
/ EA
http://schema.org/OutOfStock
/Product/CHL49753
- Cutting Depth: 6-1/8 in
- Cutting Depth Decimal Inch: 6.125
- Cutting Depth Fractional Inch: 6-1/8
- Cutting Depth Metric: 155.575
- Drill Size Fractional Inch: 53/64
- Drill Size Metric: 21.034
- Flute Length Decimal Inch: 6.125
- Flute Length Fractional Inch: 6-1/8
- Flute Length Metric: 155.575
- Flute Type: Spiral
- Hand Direction: Right Hand
- Material: HSS
- Number of Flutes: 2
- Overall Length Decimal Inch: 10
- Overall Length Fractional Inch: 10
- Overall Length Metric: 254
- Point Type: Radial
- Series: 120
- Shank Size: 53/64 in
- Shank Type: Straight
- Surface Treatment: Black Oxide
- Type: General Purpose
- Applicable Materials: Alloy Steel, Carbon Steel and Cast Iron
- Drill Size Decimal Inch: 0.8281, 0.828125
- Has Attributes: Yes
- Has Image: Yes
- Point Angle: 118 deg
- Item Features
- General purpose geometry for drilling in a wide range of operating conditions and materials
- Taper length provides longer overall length and flute length for deeper drilling
- Peck cycles may be appropriate for deep hole drilling
- Black oxide finish provides increased wear resistance and added lubricity
- -0.0012 in drill diameter tolerance
- 0.25/-0.125 in overall length tolerance
- 0.25/-0.125 in flute length tolerance
- +/-3 deg point angle tolerance
