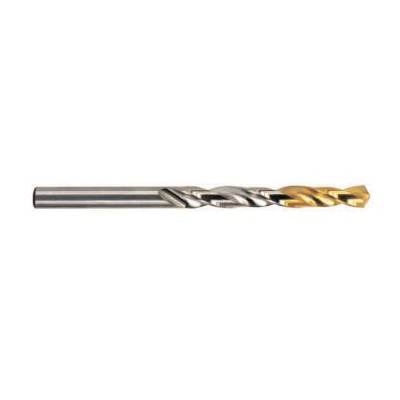

35/64 x4-13/16 x6-5/8 HSS(M2)
35/64 x4-13/16 x6-5/8 HSS(M2)
YGTCD8182035
D8182035
36.40
/ EA
http://schema.org/OutOfStock
/Product/YGTCD8182035
- Applicable Materials: Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
- Cutting Depth: 4-13/16in
- Cutting Depth Decimal Inch: 4.8125
- Cutting Depth Fractional Inch: 4-13/16
- Cutting Depth Metric: 122.237
- Drill Size Fractional Inch: 35/64
- Drill Size Metric: 13.891
- Flute Length Decimal Inch: 4.8125
- Flute Length Fractional Inch: 4-13/16
- Flute Length Metric: 122.237
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 135°
- Material: HSS
- Overall Length Decimal Inch: 6.625
- Overall Length Fractional Inch: 6-5/8
- Overall Length Metric: 168.275
- Point Type: Split
- Series: D8182
- Shank Size: 35/64in
- Shank Type: Straight
- Surface Treatment: Gold-P/TiN Coated
- System of Measurement: Imperial
- Drill Size Decimal Inch: 0.546875, 0.5469
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Application
- Standards
Machine Tools, Automobiles and Electronic Appliances
ANSI Specified
