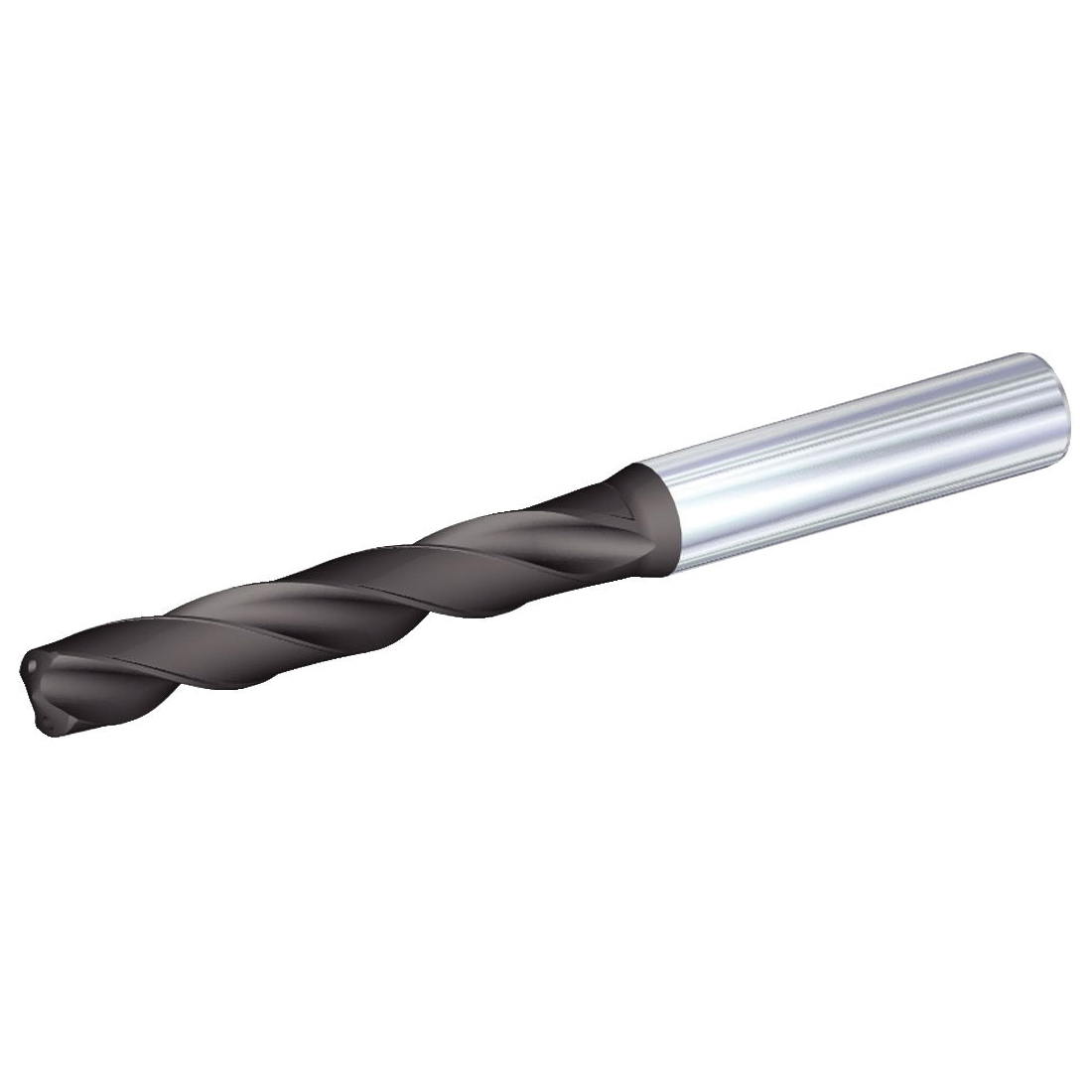

3.734MM (.1470) 5xD CARB COOLANT DRILL
3.734MM (.1470) 5xD CARB COOLANT DRILL
WIDA6327976
6327976
123.21
/ EA
http://schema.org/OutOfStock
/Product/WIDA6327976
- Cutting Depth: 5XD
- Drill Size Metric: 3.734
- Flute Length Decimal Inch: 1.102
- Flute Length Metric: 28
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 140°
- Material: Carbide
- Number of Flutes: 2
- Overall Length Decimal Inch: 66
- Overall Length Metric: 1676.4
- Point Type: TDS
- Series: TOP DRILL S™ TDS452A
- Shank Size: 6mm Dia x 36mm L
- Shank Type: Straight/Cylindrical
- Surface Treatment: AlTiN Coated
- System of Measurement: Metric
- Through Coolant (Yes/No): Yes
- Drill Size Decimal Inch: 0.147
- Has Attributes: Yes
- Has Image: Yes
- Item Features
- Internal coolant channels
- 2-margins lands for improved guidance even in though and critical conditions like cross holes and exit on inclined surfaces
- New WM15PD grade capable to operate at higher temperatures to guarantee high performance at faster cutting speeds
- High polished flutes after coating
- Cylindrical shank h6 tolerance also suitable for shrink fit holders
- Cutting diameter tolerance m7 - suitable as pilot for deep hole drills
