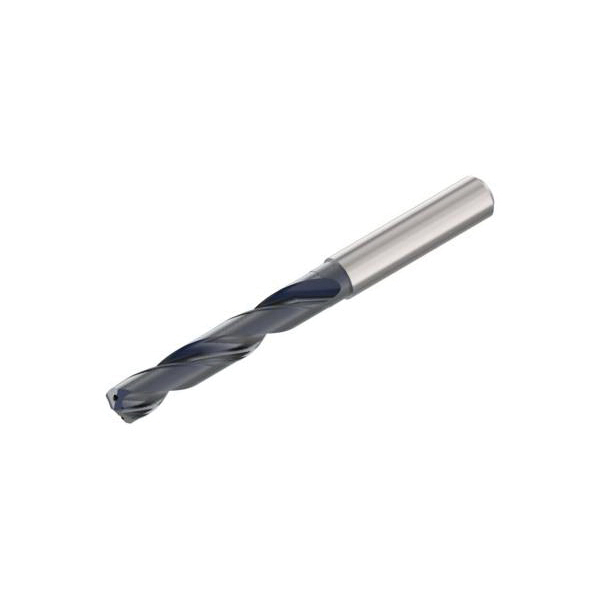

16.7MM 5XD CB COOLANT THRU DRILL
16.7MM 5XD CB COOLANT THRU DRILL
SEC02898020
02898020
720.32
/ EA
http://schema.org/OutOfStock
/Product/SEC02898020
- Applicable Materials: Cast Iron, Hard Materials, Non-Ferrous Metals, Steel and Stainless Steel
- Cutting Depth: 5XD
- Drill Size Metric: 16.688, 16.7
- Flute Length Decimal Inch: 3.661
- Flute Length Metric: 93
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 140°
- Material: Solid Carbide
- Number of Flutes: 2
- Overall Length Decimal Inch: 143
- Overall Length Metric: 3632.2
- Point Type: Self-Centering
- Series: SD1105A
- Shank Size: 18 mm Dia x 48 mm L, 18mm Dia x 48mm L
- Shank Type: Cylindrical
- Surface Treatment: TiAlN Coated
- System of Measurement: Metric
- Through Coolant (Yes/No): Yes
- Type: Universal
- Country of Origin: CN
- Drill Size Decimal Inch: 0.657
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
- Point Angle: 140 deg
Seco universal is a multi-purpose general performance solid carbide drill, that can be used in a wide range of materials and applications in all industry segments. Thanks to the design with a strong self centering 140 deg drill point, polished chip flutes and the excellent quality of the drill - high capacity utilization, application security and versatility is provided at a very low cost. With Seco universal stock holding cost can be reduced and greater machining flexibility is offered, leading to reduced set-up time. Seco universal is an alternative to Seco Feedmax™ in operations when versatility, flexibility and reduced stock holding cost are the main targets.
