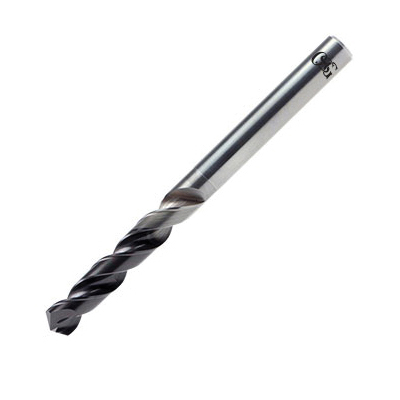

0.129 x 0.800 x 3 AERO-TYPE S (#30) DRILL
0.129 x 0.800 x 3 AERO-TYPE S (#30) DRILL
OSG753012916
753012916
195.17
/ EA
http://schema.org/OutOfStock
/Product/OSG753012916
- Color: Black
- Cutting Depth: 20.3mm
- Cutting Depth Decimal Inch: 0.799
- Cutting Depth Metric: 20.3
- Drill Size Metric: 3.264, 3.277
- Drill Size Number: #30
- Flute Length Decimal Inch: 0.799
- Flute Length Metric: 20.3
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 120°
- Material: Carbide
- Number of Flutes: 2
- Overall Length Decimal Inch: 76.2
- Overall Length Metric: 1935.48
- Series: EXOPRO® AERO-S 7530
- Shank Size: 3.27mm
- Shank Type: Straight
- Surface Treatment: Diamond Coated
- System of Measurement: Imperial
- Through Coolant (Yes/No): No
- Type: High Helix Premium High Performance
- Drill Size Decimal Inch: 0.1285, 0.129
- Has Attributes: Yes
- Has Image: Yes
Drills are used to make holes in a wide range of surfaces. OSG has received high acclaim for the development of high precision, high value added products for its use in automotive and aircraft part manufacture, which demands advanced processing techniques and zero margin of error.
- Item Features
- Standards
- Medium to long flute length drills for a wide range of work materials
- High helix angle shears through tough fibers
- Drill point designed for cutting stack provides optimal cutting geometry for cutting multiple material stacks
- Thin web and wide flute reduces thrust and improves chip evacuation
- OSG's patented diamond coating ensures smoother and sharper cutting edges providing up to 50 times longer tool life
