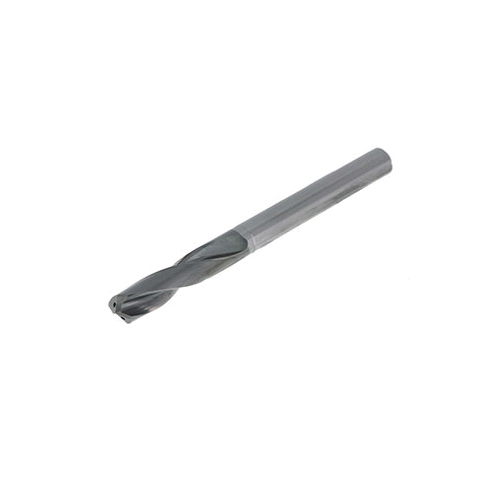

6.8MM WHO-NI 5D DRILL
6.8MM WHO-NI 5D DRILL
OSG3316680
3316680
195.37
/ EA
http://schema.org/OutOfStock
/Product/OSG3316680
- Color: Black Gray
- Cutting Depth: 5XD
- Drill Size Metric: 6.8
- Flute Length Decimal Inch: 2.205
- Flute Length Metric: 56
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 140°
- Material: Carbide
- Number of Flutes: 2
- Overall Length Decimal Inch: 102
- Overall Length Metric: 2590.8
- Point Type: R-Thinning
- Series: EXOPRO® WHO-Ni 5955Ni
- Shank Size: 8mm
- Surface Treatment: WXS® Coated
- System of Measurement: Metric
- Type: Performance
- Drill Size Decimal Inch: 0.26772, 0.268
- Has Attributes: Yes
- Has Image: Yes
Drills are used to make holes in a wide range of surfaces. OSG has received high acclaim for the development of high precision, high value added products for its use in automotive and aircraft part manufacture, which demands advanced processing techniques and zero margin of error.
- Application
- Item Features
- Standards
For shallow hole applications
- Short flute lengths and rigid
- OSG WXS nano coating technology higher coating oxidation temperature and hardness dramatically improve wear-resistance in high hardened and high heat materials
- Lower helix angles create stronger cutting faces, essential when cutting Ni-alloys and hardened steels
- Internal coolant holes - coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds
- The ultimate in drilling performance for hardened steels and nickel alloys
PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
