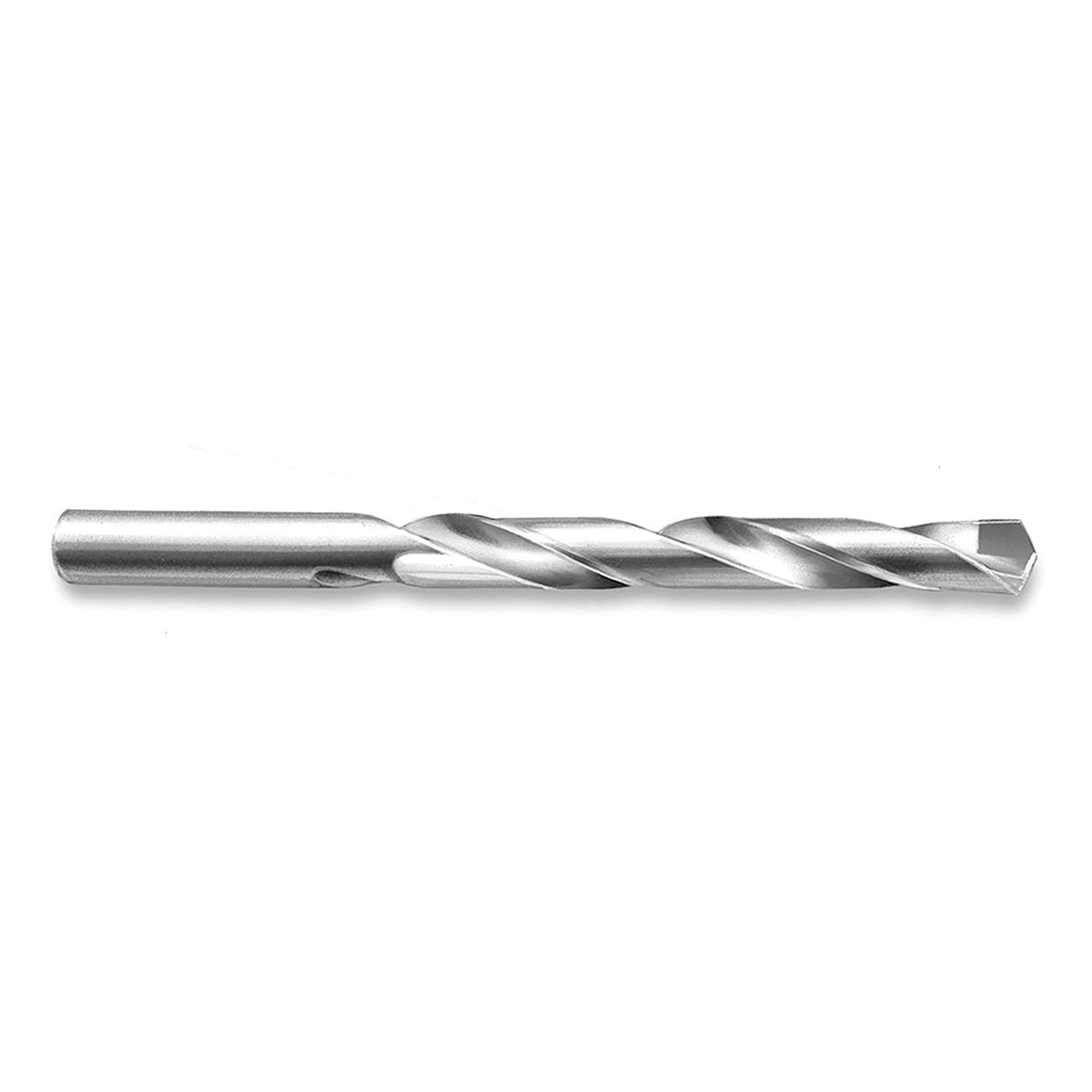

#601 #30 135DEG SPLIT PT CT DRILL
#601 #30 135DEG SPLIT PT CT DRILL
HCT60330
60330
23.30
/ EA
http://schema.org/OutOfStock
/Product/HCT60330
- Applicable Materials: Cast Iron and Non-Ferrous Materials
- Cutting Depth: 1-5/8 in
- Cutting Depth Decimal Inch: 1.625
- Cutting Depth Fractional Inch: 1-5/8
- Cutting Depth Metric: 41.275
- Drill Size Metric: 3.264
- Drill Size Number: #30
- Flute Length Decimal Inch: 1.625
- Flute Length Fractional Inch: 1-5/8
- Flute Length Metric: 41.275
- Flute Type: Spiral
- Material: Carbide, Tool Steel
- Overall Length Decimal Inch: 2.75
- Overall Length Fractional Inch: 2-3/4
- Overall Length Metric: 69.85
- Point Type: Split
- Series: 601WLS
- Shank Type: Flat/Tanged
- System of Measurement: Imperial
- Through Coolant (Yes/No): No
- Type: Material Specific
- Drill Size Decimal Inch: 0.1285
- Has Attributes: Yes
- Has Image: Yes
- Point Angle: 135 deg
- Item Features
- Drills are end cutting tools used to produce holes when rapid removal of material is desired
- Twist drills are generally effective in holes up to 3 tool diameters deep, peck cycles should be used for deeper holes to achieve better chip evacuation
- 135 deg split point designed for drilling tough abrasive or high tensile materials
- Carbide tip high temperature brazed to hardened tool steel body
- Smooth flutes for effective chip flow
- Precision ground to insure concentricity of tip and body
- The most popular carbide tipped drill will perform satisfactorily under a variety of conditions
