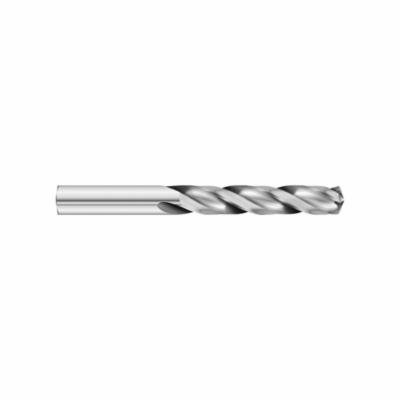

5/32 3FL CARBIDE DRILL 1540
5/32 3FL CARBIDE DRILL 1540
FUT15407
15407
36.72
/ EA
http://schema.org/OutOfStock
/Product/FUT15407
- Cutting Depth: 1-3/8in
- Cutting Depth Decimal Inch: 1.375
- Cutting Depth Fractional Inch: 1-3/8
- Cutting Depth Metric: 34.925
- Drill Size Fractional Inch: 5/32
- Drill Size Metric: 3.967, 3.969
- Flute Length Decimal Inch: 1.375
- Flute Length Fractional Inch: 1-3/8
- Flute Length Metric: 34.925
- Flute Type: Spiral
- Hand Direction: Right Hand
- Material: Dura-Carb
- Number of Flutes: 3
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Point Type: Thinned
- Series: 1540
- Shank Size: 5/32in
- Surface Treatment: UNCOATED
- System of Measurement: Imperial
- Through Coolant (Yes/No): No
- Type: General Purpose Single End Standard Length
- Drill Size Decimal Inch: 0.1562, 0.15625
- Has Attributes: Yes
- Has Image: Yes
- Point Angle: 150°
Fullerton's 1540 offers a robust 3-flute design that produces straight round holes. Improved productivity over traditional 2-flute designs due to an additional cutting edge. For your cast iron and Hardened steels, stainless steels, Brass and bronze drilling applications.
- Item Features
- +0.0000 in, -0.0005 in/+0.000 mm, -0.013 mm shank diameter tolerance
- +0.0000 in, -0.0005 in/+0.000 mm, -0.013 mm cutter diameter tolerance
- 30 deg helix
