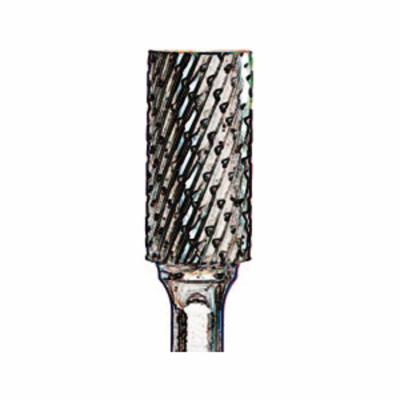

SA1 DC 1/4X5/8X1/4 CARB BUR
SA1 DC 1/4X5/8X1/4 CARB BUR
UNA45000
45000
22.37
/ EA
http://schema.org/OutOfStock
/Product/UNA45000
- Applicable Materials: Metal and Stainless Steel
- Country of Origin: US
- Cut Type: Double Cut
- End Type: Plain
- Head Diameter: 1/4 in
- Head Material: Tungsten Carbide
- Industry Specification: SA1
- Length of Cut Decimal Inch: 0.625
- Length of Cut Fractional Inch: 5/8
- Length of Cut Metric: 15.875
- Manufacturer Name: United Abrasives
- Maximum Speed: 22000 rpm
- Overall Length Decimal Inch: 2.375
- Overall Length Fractional Inch: 2-3/8
- Overall Length Metric: 60.325
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Head Shape: Cylindrical - No End Cut (Shape SA)
- Has Attributes: Yes
- Has Image: Yes
United Abrasives offers a complete line of tungsten carbide burrs in the most popular shapes and sizes to meet your needs. Choosing the right burr depends on the material to be ground, grinding speed, desired shape and finish requirements. United Abrasives burrs are precision ground with diamond wheels resulting in a concentric tool with very sharp, uniform teeth. This manufacturing method produces the highest quality burr, properly balanced for vibration-free operation and long tool life. Tungsten burrs are best suited for efficient material removal at high rpm.
- Application
- Item Features
Deburring, Finishing and Grinding
- Tungsten carbide construction for long life and durability
- High quality manufacturing method delivers vibration-free operation
- Precision ground with diamond wheels to produce a very sharp uniform cutting edge
- Each enclosed in individual plastic capsules for storage and protection
- Enlarging holes, removing welds and smoothing castings
- For use with die grinders
- Double cut or alternate cut is the most popular burr in ferrous applications
- Manufactured with cuts made on the left and right spirals, this design produces a finer finish on material producing smaller chips and slivers
- The double cut offers much smoother operation and greater tool control
