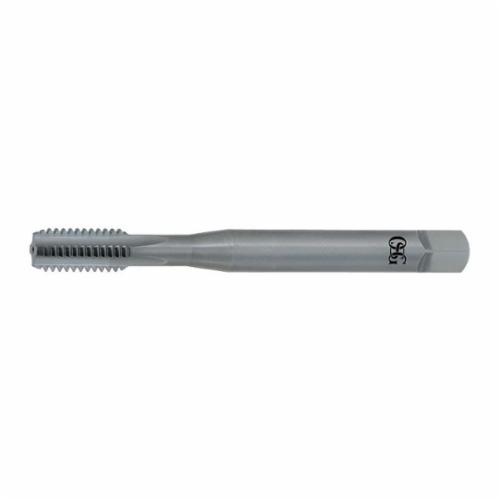

3/8-16 2B 4FL BTM CARB TAP
3/8-16 2B 4FL BTM CARB TAP
OSG1005910800
1005910800
216.92
/ EA
http://schema.org/OutOfStock
/Product/OSG1005910800
- Chamfer: Bottoming
- Class of Fit: 2B
- Hand Direction: Right Hand
- Material: Carbide
- Number of Flutes: 4
- Overall Length Decimal Inch: 2.9375
- Overall Length Fractional Inch: 2-15/16
- Overall Length Metric: 74.612
- Series: 10059
- Shank Diameter Decimal Inch: 0.381
- Surface Treatment: Bright
- System of Measurement: Imperial
- Thread Length Decimal Inch: 1.25
- Thread Length Fractional Inch: 1-1/4
- Thread Size: 3/8-16
- Thread Standard: UNC
- Through Coolant (Yes/No): No
- Applicable Materials: Aluminum, Cast Aluminum and Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Application
- Standards
For general machine tapping, hand and power tapping for through or blind holes
