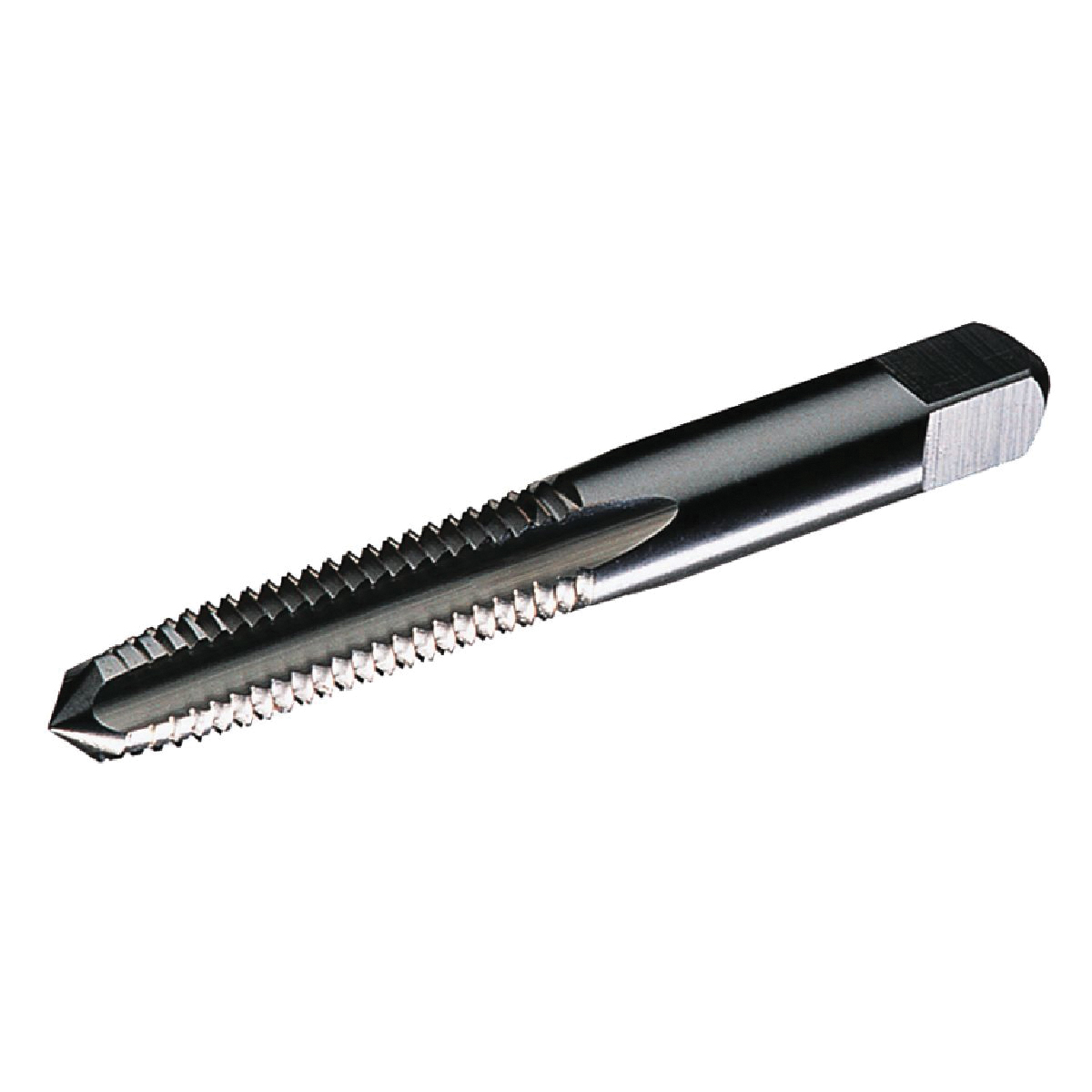

1-3/8-6 H4 4FL TAPER HAND TAP 5303
1-3/8-6 H4 4FL TAPER HAND TAP 5303
GRE3012774
3012774
313.02
/ EA
http://schema.org/OutOfStock
/Product/GRE3012774
- Chamfer: Tapered
- Class of Fit: 2B/3B
- Hand Direction: Right Hand
- Material: HSS
- Number of Flutes: 4
- Overall Length Decimal Inch: 6.06
- Overall Length Metric: 153.924
- Series: 5303
- Shank Diameter Decimal Inch: 1.108
- Surface Treatment: UNCOATED
- System of Measurement: Imperial
- Thread Length Decimal Inch: 3
- Thread Length Fractional Inch: 3
- Thread Limit: H4
- Thread Size: 1-3/8-6
- Thread Standard: UNC
- Type: General Purpose
- Through Coolant (Yes/No): Yes
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For through hole and blind hole in general machining applications
- Most popular style of tap
- Manufactured from select high speed steel for increased wear life
- Can be used by hand or for tapping under power
- Versatile taps for use in general machine tapping or CNC tapping applications
- Hand taps store chips in their flutes next to the chamfered teeth during the threading operation
- Uncoated taps are recommended for non-ferrous materials and cast iron
ANSI 302
