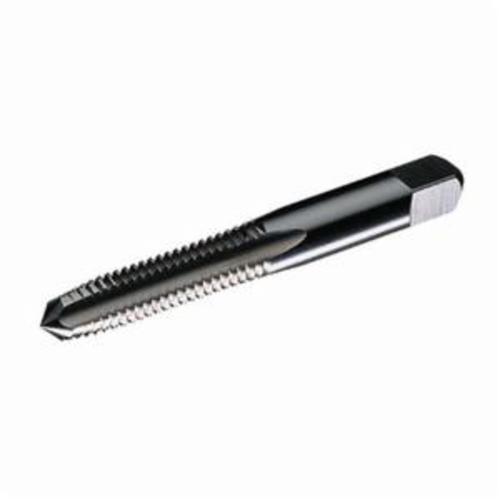

2305 6-40 H2 2FL PLUG TIN
2305 6-40 H2 2FL PLUG TIN
GRE2748601
2748601
12.18
/ EA
http://schema.org/OutOfStock
/Product/GRE2748601
- Chamfer: Plug
- Class of Fit: 2B/3B
- Hand Direction: Right Hand
- Material: HSS
- Number of Flutes: 2
- Overall Length Decimal Inch: 2
- Overall Length Fractional Inch: 2
- Overall Length Metric: 50.8
- Series: 2305
- Shank Diameter Decimal Inch: 0.141
- Shank Diameter Fractional Inch: 9/64
- Surface Treatment: TiN Coated
- System of Measurement: Imperial
- Thread Length Decimal Inch: 0.688
- Thread Length Fractional Inch: 11/16
- Thread Limit: H2
- Thread Size: #6-40
- Thread Standard: UNF
- Through Coolant (Yes/No): Yes
- Applicable Materials: Steel, Stainless Steel and Cast Iron
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For through hole and blind hole in general machining applications
- Most popular style of tap
- Manufactured from select high speed steel for increased wear life
- Can be used by hand or for tapping under power
- Versatile taps for use in general machine tapping or CNC tapping applications
- Hand taps store chips in their flutes next to the chamfered teeth during the threading operation
- Provides increased tap wear life and improved product thread finish
ANSI 302
