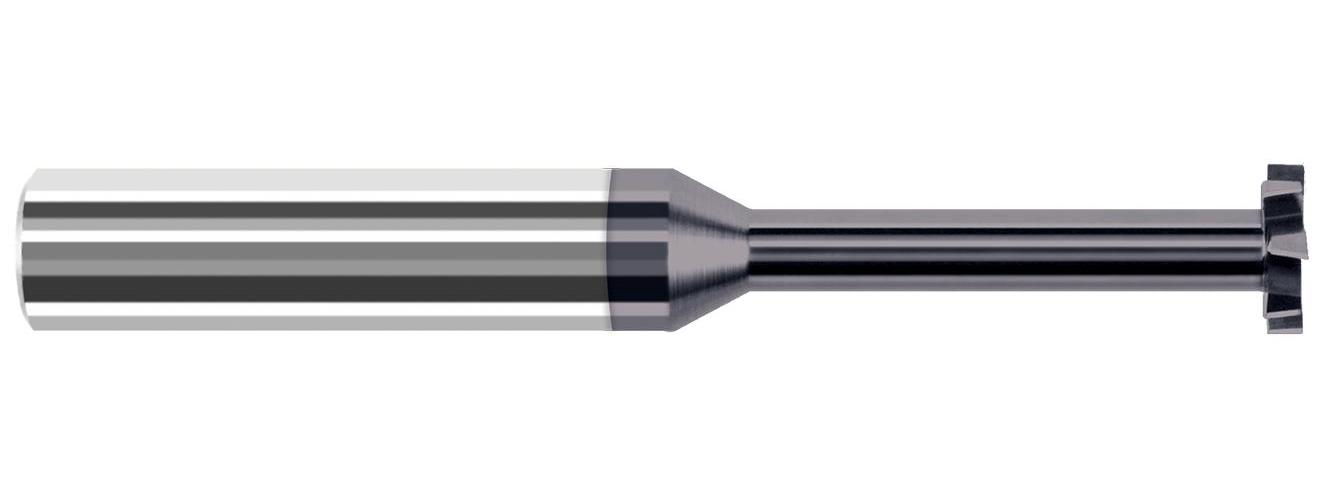

1/2 x1/16 8T .005R SCST AlTiN
1/2 x1/16 8T .005R SCST AlTiN
HATL976730-C3
976730-C3
205.70
/ EA
http://schema.org/OutOfStock
/Product/HATL976730-C3
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Cutting Width: 0.062 in, 0.062in
- Neck Length: 1.5in
- Number of Flutes: 8
- Material: Solid Carbide
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Tooth Configuration: Staggered
- Connection Type: Shank
- Corner Radius: 0.005in
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.25in
- Radial Depth of Cut: 0.115in
- Reach Multiple: 3X
- Shank Type: Cylindrical
- Surface Treatment: AlTiN, C3
- Item Features
- Standards
- Staggered tooth design for freer cutting action
- Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
- Alternating RH/LH shear flutes, RH cut
- Relieved to allow cutting on both sides of head
- Tool can be offset to increase width of groove
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Neck Diameter 0.2500 in (1/4)
- Neck Length 1.5000 in (1-1/2)
- Reach Multiple (3x)
- Radial Depth Of Cut 0.1150 in
- Profile Corner Radius
