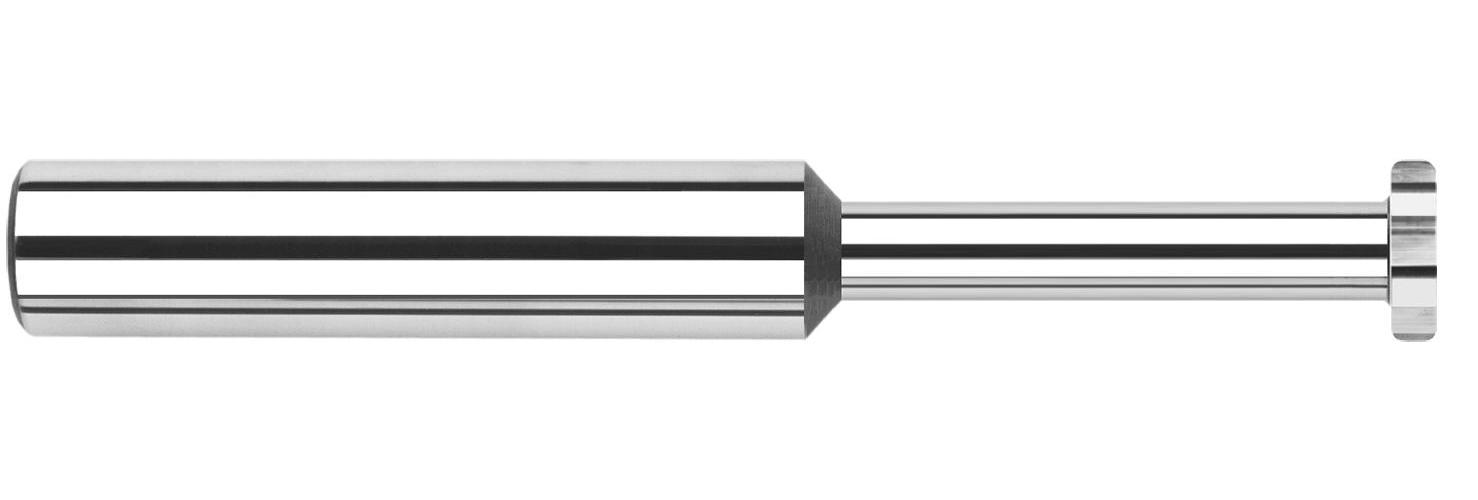

1/2" 8FL .010R 3X TY 1 CARB KEYSEAT CUTTER
1/2" 8FL .010R 3X TY 1 CARB KEYSEAT CUTTER
HATL793960
793960
135.70
/ EA
http://schema.org/OutOfStock
/Product/HATL793960
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Type: I, Standard Slotting
- Cutting Width: 0.125 in, 0.125in
- Neck Length: 1.5in
- Number of Flutes: 8
- Material: Solid Carbide
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Connection Type: Shank
- Corner Radius: 0.01in
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.25in
- Radial Depth of Cut: 0.115in
- Reach Multiple: (3x)
- Shank Type: Cylindrical
- Surface Treatment: Un, UNCOATED
- Item Features
- Both sides of cutter are dished for clearance
- Corner radius for improved strength
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Flutes 8
- Neck Diameter 0.2500 in (1/4)
- Neck Length 1.5000 in (1-1/2)
- Reach Multiple (3x)
- Radial Depth Of Cut 0.1150 in
- Type I
