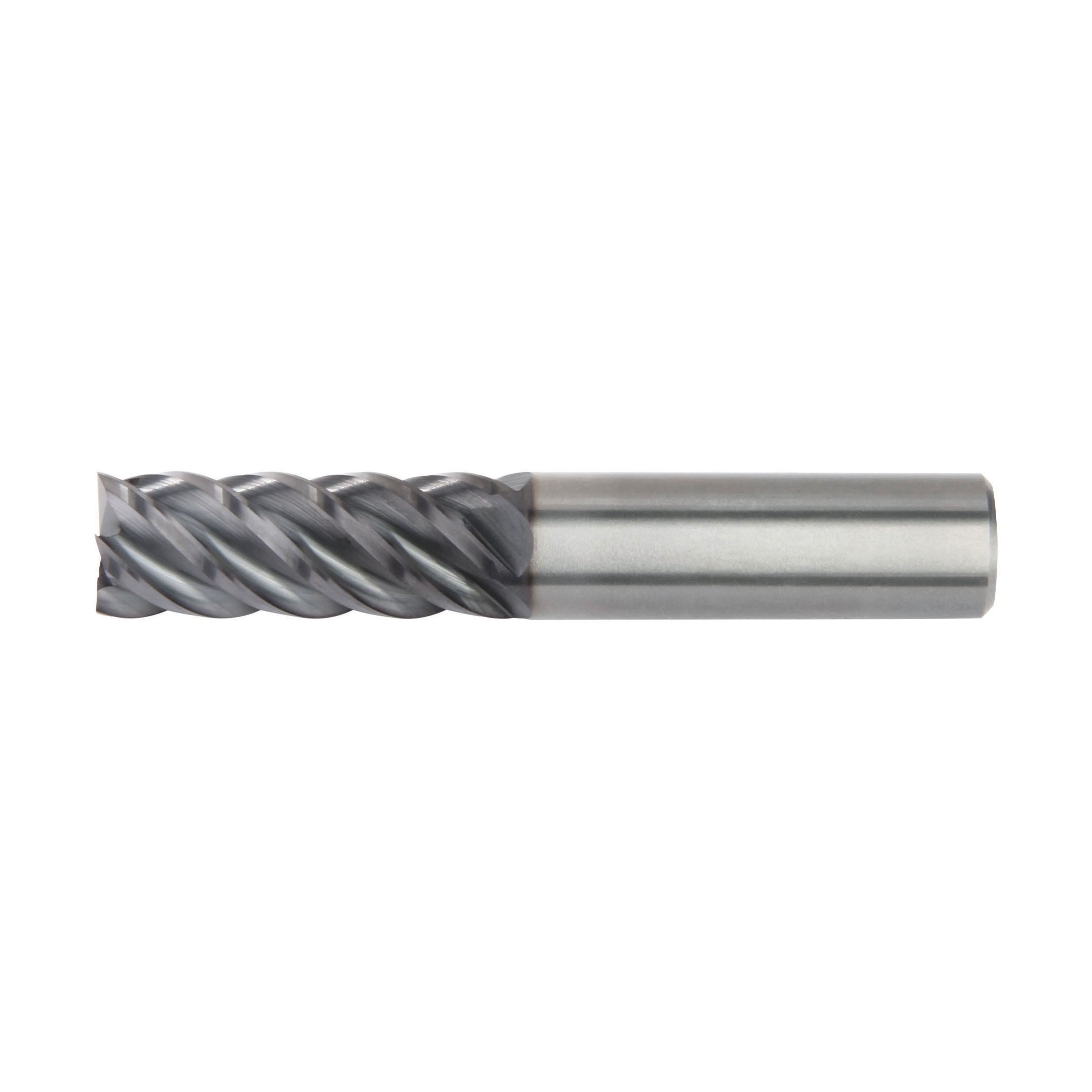

SC FIN 5FL 1/8x1/8x1/2x1-1/2 END MILL
SC FIN 5FL 1/8x1/8x1/2x1-1/2 END MILL
WIDA5577187
5577187
35.70
/ EA
http://schema.org/OutOfStock
/Product/WIDA5577187
- Cutter Diameter Decimal Inch: 0.125
- Cutter Diameter Fractional Inch: 1/8
- Cutter Diameter Metric: 3.175
- Type: Center Cutting High Performance Single End Square End
- Number of Flutes: 5
- Length of Cut Decimal Inch: 0.5
- Length of Cut Fractional Inch: 1/2
- Length of Cut Metric: 12.7
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: AlTiN Coated
- Helix Angle: 45°
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Straight
- Series: 4C05
- Country of Origin: IL
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: WIDIA
WIDIA™ has taken the next step in solid carbide end mill innovation by introducing the Victory™ Grades WP15PE™ and WS15PE™. Victory™ combines state-of-the-art surface treatments and proprietary edge technology with the successful market-leading WIDIA™ geometries, delivering significant improvement to tool life and Metal Removal Rates (MRR). The new Victory™ Grades can be found across the entire high performance offering, which includes the VariMill™ family, high performance roughers, and high performance finishers.
- Application
- Item Features
Ramping, Finishing, Side Milling and Shoulder Milling
- Specifically designed geometries for finishing in a wide range of materials
- Higher number of flutes and higher helix angles for super finishing applications
- High metal removal rates (MRR) requiring fewer passes and longer tool life while providing superior surface finishes
