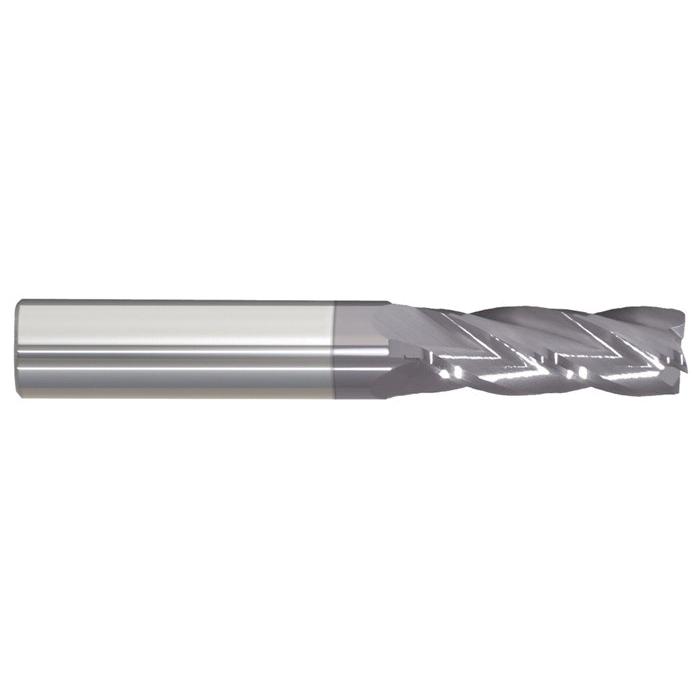

0.125 DIA END MILL
0.125 DIA END MILL
MOTC206-001067
206-001067
10.38
/ EA
http://schema.org/OutOfStock
/Product/MOTC206-001067
- Cutter Diameter: 1/8 in
- Cutter Diameter Decimal Inch: 0.125
- Cutter Diameter Fractional Inch: 1/8
- Cutter Diameter Metric: 3.175
- Type: Center Cutting Equal Index Regular Length Single End
- Number of Flutes: 4
- Length of Cut: 1/2 in
- Length of Cut Decimal Inch: 0.5
- Length of Cut Fractional Inch: 1/2
- Length of Cut Metric: 12.7
- Overall Length: 1-1/2 in
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: C2 Submicron Solid Tungsten Carbide
- Helix Angle: 30 deg
- Shank Diameter: 1/8 in
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Straight
- Country of Origin: US
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Manufacturer Name: Monster Tool
- Application
- Item Features
Profiling, Slotting and Ramping
- Used for general purpose milling in the metal working industry
- Offers precision machining using quality tool material and tight tolerances
- Designed for profiling, slotting, production milling and finishing applications in a wide range of ferrous metals, including stainless steels and high temperature alloys
- C2 submicron substrate for excellent wear-resistance
- 4-flute design offers increased core design which minimizes tool deflection and improves accuracy
- Universal 30 deg helix designed for proven success in various materials
- Square end design aids in additional surface finish quality
- Multiple coating options for specific machining needs
