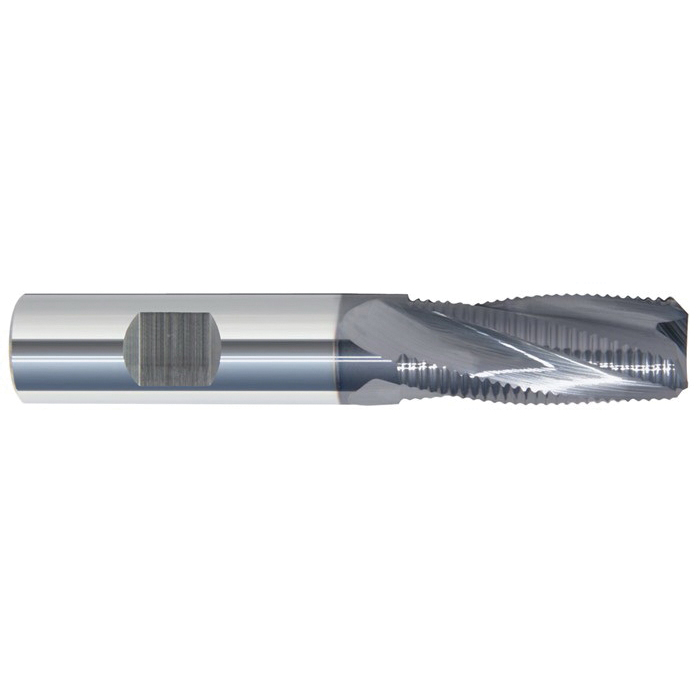

1/2 4FL HPF TiAlN ROUGHER END MILL
1/2 4FL HPF TiAlN ROUGHER END MILL
MOTC255-200500B
255-200500B
129.55
/ EA
http://schema.org/OutOfStock
/Product/MOTC255-200500B
- Country of Origin: US
- Cutter Diameter: 1/2 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 20 deg
- Manufacturer Name: Monster Tool
- Shank Type: WELDON FLAT
- Type: Center Cutting High Performance Long Length Single End Unequal Index
- Series: Aggressor-F
- Length of Cut: 2 in
- Number of Flutes: 4
- Overall Length: 4 in
- Material: C2 Submicron Solid Tungsten Carbide
- Shank Diameter: 1/2 in
- Application
- Item Features
Profiling, Radius Slotting and Ramping
- High performance roughing end mill features progressive flute geometry, in addition to a sinusoidal wave form on the cutting edge offering ideal chip evacuation, with optimum work piece finish
- Designed for shallow slotting and peripheral milling in difficult to machine and abrasive materials
- Designed for heavy material removal applications where cycle times are critical
- Fine tooth serrations promote smooth chip clearance by creating small chips in hardest materials
- Corner chamfer for edge strength and wear protection
- Relaxed 20 deg helix enhances stability in hard materials
