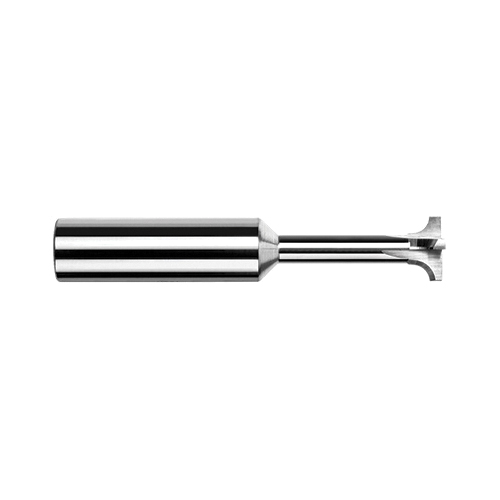

.047"R x .250"HEAD DIA 3FL BACK CR END MILL

.047"R x .250"HEAD DIA 3FL BACK CR END MILL

HATL16047 16047
88.70 / EA
http://schema.org/OutOfStock
.047R x.250 SC BACK CR END MILL
  • Type: Flared Imperial
  • Cutter Diameter Decimal Inch: 0.25
  • Cutter Diameter Fractional Inch: 1/4
  • Cutter Diameter Metric: 6.35
  • Number of Flutes: 3
  • Surface Treatment: UNCOATED
  • Overall Length: 2-1/2 in, 2-1/2in
  • Shank Diameter: 1/4 in, 1/4in
  • Country of Origin: US
  • Has Attributes: Yes
  • Has Image: Yes
  • Length of Cut: 5/8 in, 5/8in
  • Manufacturer Name: Harvey Performance Company, Harvey Tool
  • Material: Solid Carbide
QTY
Add to List
  • Item Features
  • Designed to mill radius on back side of workpiece
  • 5 deg flares at neck and shoulder to avoid steps
  • Flares are tangent to radius (flare is blended to radius to ensure smooth form)
  • Cutting on radius and flares only
