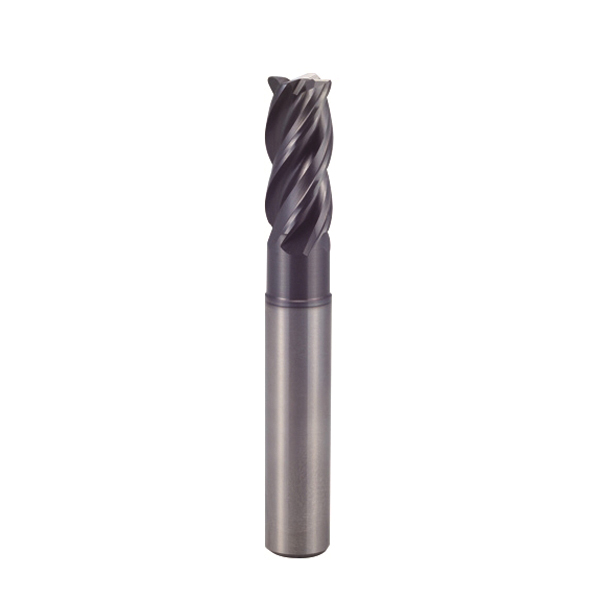

1/2" 4FL .030CR V7 PLUS A EXT LENGTH END MILL
1/2" 4FL .030CR V7 PLUS A EXT LENGTH END MILL
YGTCUGMF74905
UGMF74905
114.39
/ EA
http://schema.org/OutOfStock
/Product/YGTCUGMF74905
- Corner Radius: 0.03in
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.625
- Length of Cut Fractional Inch: 5/8
- Length of Cut Metric: 15.875
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Material: Micrograin Carbide
- Surface Treatment: Y-Coated
- Helix Angle: 36°
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Shank Type: Plain
- Series: UGMF74 V7 PlusA
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Type: Center Cut Extended Length Imperial
- Item Features
- Special flute geometry and multiple helix eliminate vibrations
- Excellent performance for stainless steels, mild steels, cast iron, low/medium hardness materials and all exotic materials up to HRc40
- Advanced coating for superior performance and tool life
