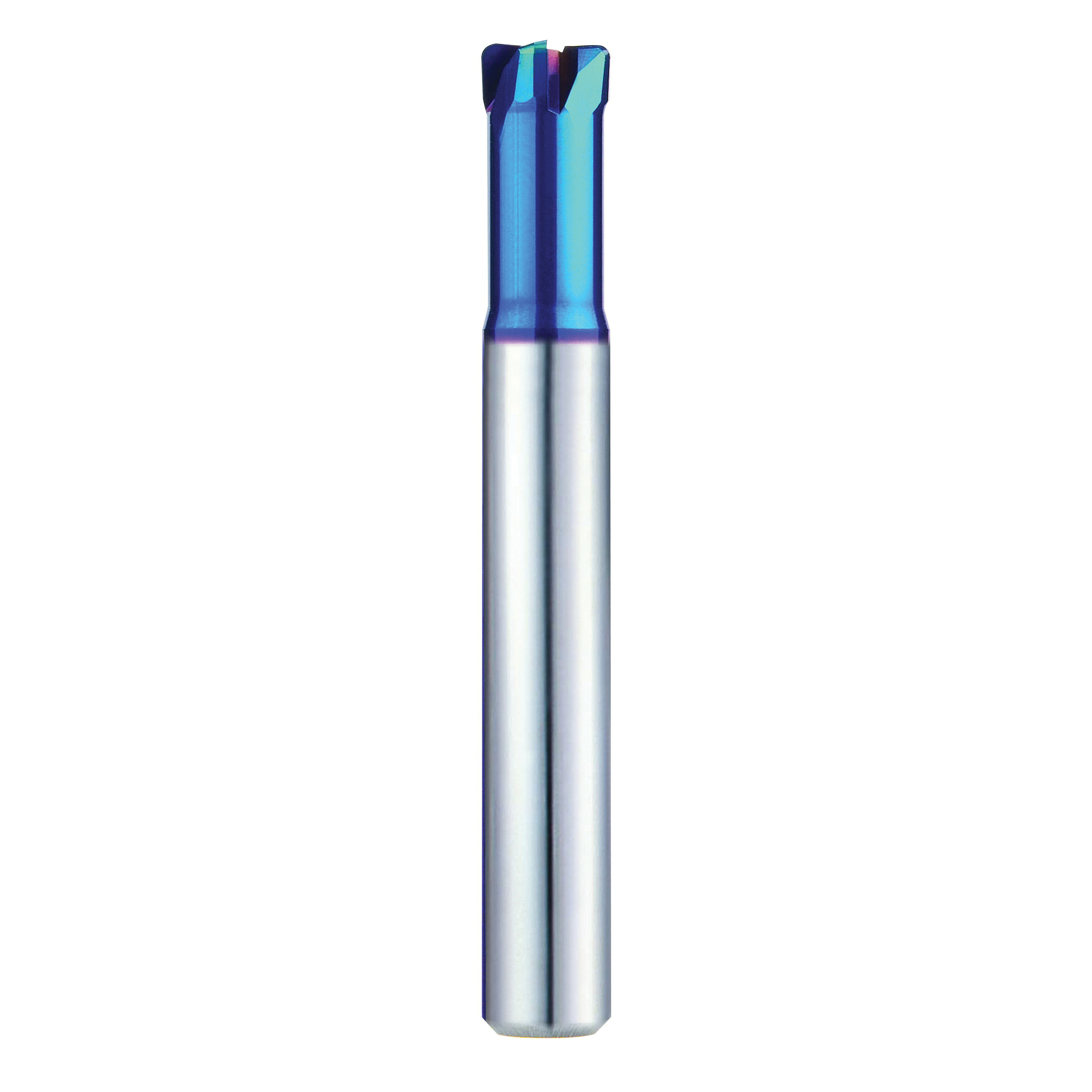

G826 5/16" 4FL STUB 3/32CR X5070 END MILL
G826 5/16" 4FL STUB 3/32CR X5070 END MILL
YGTCG826206
G826206
77.54
/ EA
http://schema.org/OutOfStock
/Product/YGTCG826206
- Corner Radius: 3/32in
- Cutter Diameter Decimal Inch: 0.3125
- Cutter Diameter Fractional Inch: 5/16
- Cutter Diameter Metric: 7.938
- Number of Flutes: 4
- Length of Cut Decimal Inch: 0.13
- Length of Cut Metric: 3.302
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Nano Grain Carbide
- Surface Treatment: Blue Coated
- Helix Angle: 0°
- Shank Diameter Decimal Inch: 0.3125
- Shank Diameter Fractional Inch: 5/16
- Shank Type: Plain
- Series: G826 X5070
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Type: Center Cut High Feed Imperial Stub Length
- Item Features
- Excellent wear resistance at heavy feed rates on high hardened material
- Designed with reduced clearance angles and short flutes for strength
- High hardness and heat resistance coating for long life in dry applications
