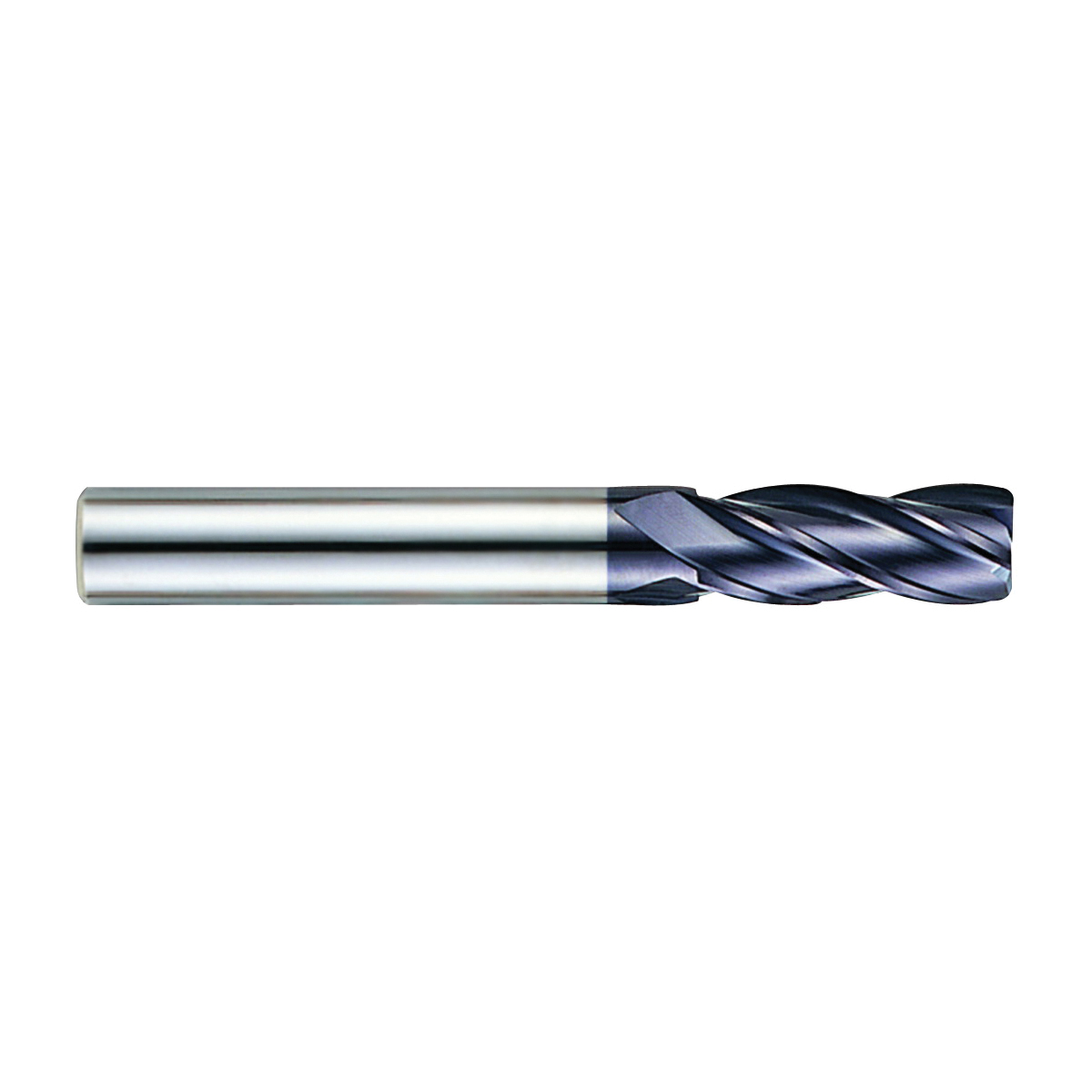

7/16" 4FL .020CR X-POWER CARBIDE END MILL
7/16" 4FL .020CR X-POWER CARBIDE END MILL
YGTC93595
93595
79.96
/ EA
http://schema.org/OutOfStock
/Product/YGTC93595
- Corner Radius: 0.02in
- Cutter Diameter Decimal Inch: 0.4375
- Cutter Diameter Fractional Inch: 7/16
- Cutter Diameter Metric: 11.112
- Number of Flutes: 4
- Length of Cut Decimal Inch: 1
- Length of Cut Fractional Inch: 1
- Length of Cut Metric: 25.4
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Material: Micrograin Carbide
- Surface Treatment: AlTiN Coated
- Helix Angle: 30°
- Shank Diameter Decimal Inch: 0.4375
- Shank Diameter Fractional Inch: 7/16
- Shank Type: Plain
- Series: EM649 X-POWER
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Type: Center Cut High Performance Imperial Regular Length
- Item Features
- Designed to machine tool steel, alloy steel, mold steel and other high hardened materials
- Superior workpiece finish
- Increased feed rates
