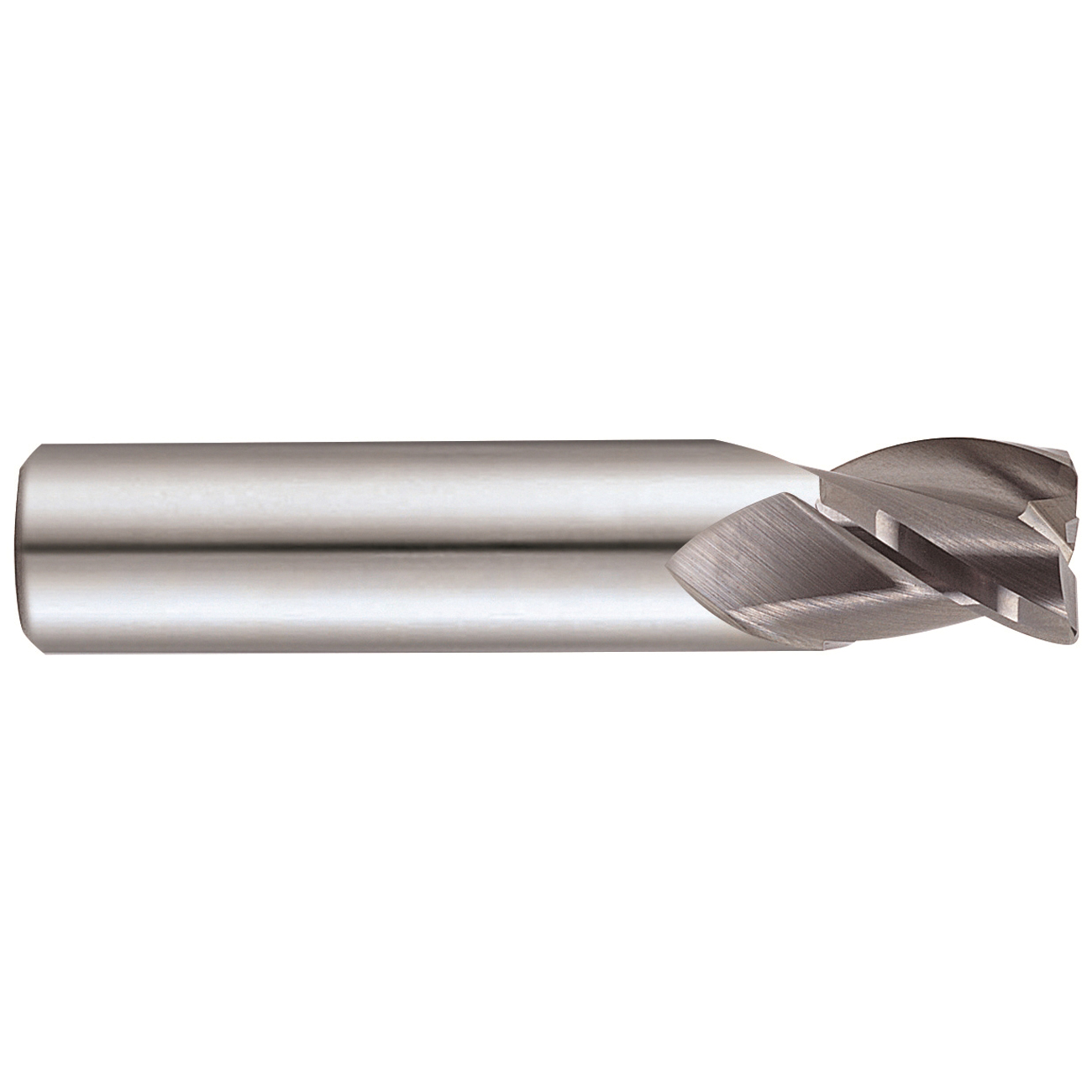

E5075 5/8"3FL STUB CR JET-POWER END MILL
E5075 5/8"3FL STUB CR JET-POWER END MILL
YGTC57595TF
57595TF
168.61
/ EA
http://schema.org/OutOfStock
/Product/YGTC57595TF
- Corner Radius: 0.033in
- Cutter Diameter Decimal Inch: 0.625
- Cutter Diameter Fractional Inch: 5/8
- Cutter Diameter Metric: 15.875
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.75
- Length of Cut Fractional Inch: 3/4
- Length of Cut Metric: 19.05
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Material: Micrograin Carbide
- Surface Treatment: TiAlN Coated
- Helix Angle: 35°
- Shank Diameter Decimal Inch: 0.625
- Shank Diameter Fractional Inch: 5/8
- Shank Type: Flat
- Series: E5105 JET-POWER
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: YG-1 Tool
- Type: Center Cut High Performance HOSS Imperial Stub Length
- Application
- Item Features
Slotting and Ramping Applications
- #1 choice for slotting, ramping and pocket work on stainless, monel and other alloys up to HRC35
- Dry milling is recommended on steel alloys to reduce thermal shock and increase the life
