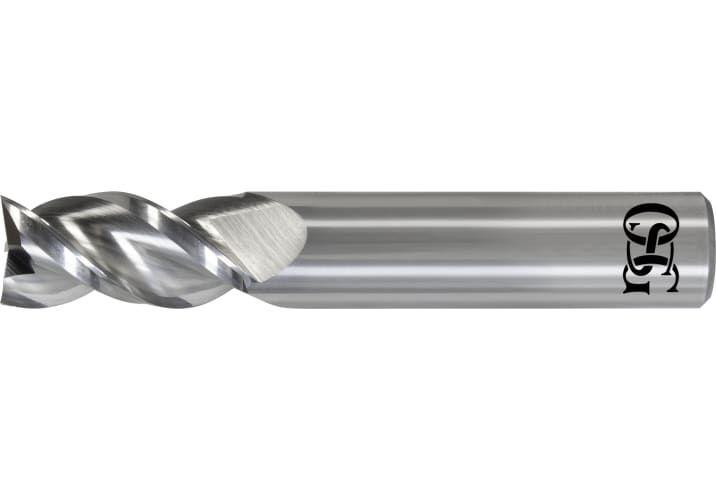

VGM3-AL-02500CR0.06-N END MILL
VGM3-AL-02500CR0.06-N END MILL
OSGVGM3-0014
VGM3-0014
26.92
/ EA
http://schema.org/OutOfStock
/Product/OSGVGM3-0014
- Corner Radius: 0.06in
- Cutter Diameter Decimal Inch: 0.25
- Cutter Diameter Fractional Inch: 1/4
- Cutter Diameter Metric: 6.35
- Type: High Performance
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.625
- Length of Cut Fractional Inch: 5/8
- Length of Cut Metric: 15.875
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Carbide
- Surface Treatment: Bright
- Helix Angle: 40 to 43°
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Shank Type: Cylindrical/Straight
- Series: VGM3-AL
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: OSG
- Item Features
- Variable Index and Helix
- Refined geometry
- Ultra smooth Flutes
- DLC available on request
