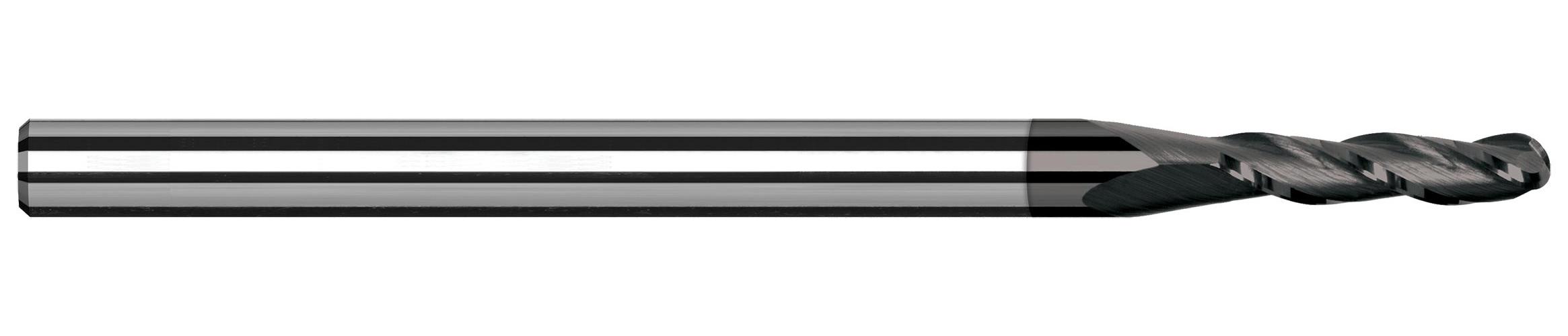

.062 BALL V-HELIX NF, 3xLOC 3FL DMD
.062 BALL V-HELIX NF, 3xLOC 3FL DMD
HATL989762-C4
989762-C4
52.60
/ EA
http://schema.org/OutOfStock
/Product/HATL989762-C4
- Cutter Diameter Decimal Inch: 0.062
- Cutter Diameter Fractional Inch: 1/16
- Cutter Diameter Metric: 1.575
- Type: Center Cut Variable Helix
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.186
- Length of Cut Metric: 4.724
- Overall Length Decimal Inch: 1.5
- Overall Length Fractional Inch: 1-1/2
- Overall Length Metric: 38.1
- Material: Solid Carbide
- Surface Treatment: Amorphous Diamond, C4
- Helix Angle: 42 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Item Features
- Standards
- Variable helix design reduces chatter and harmonics and increases material removal rates
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Profile Ball
