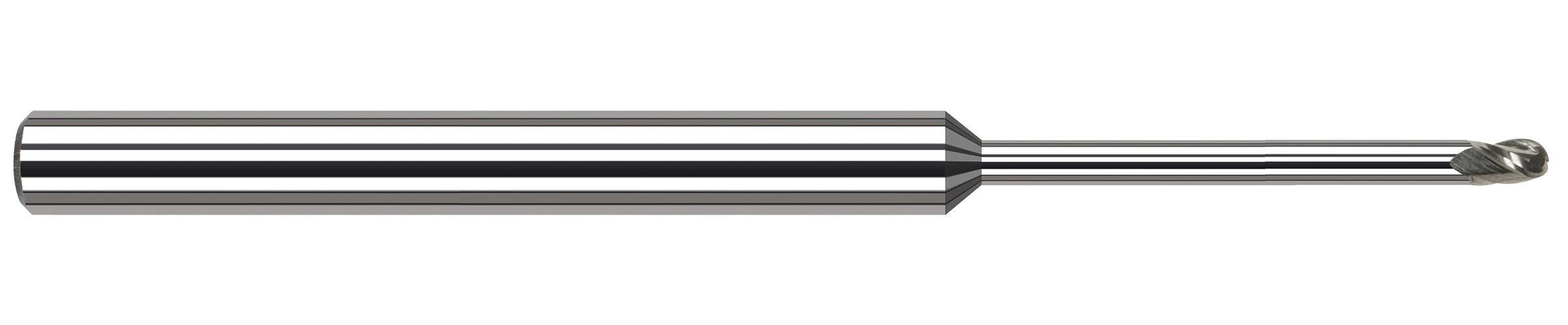

.062 BALL V-HELIX NF, 12x RCH, 3FL
.062 BALL V-HELIX NF, 12x RCH, 3FL
HATL879462
879462
72.50
/ EA
http://schema.org/OutOfStock
/Product/HATL879462
- Cutter Diameter Decimal Inch: 0.062
- Cutter Diameter Fractional Inch: 1/16
- Cutter Diameter Metric: 1.575
- Type: Center Cut Stub Length Variable Helix
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.093, 0.09375
- Length of Cut Fractional Inch: 3/32
- Length of Cut Metric: 2.362, 2.381
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: UNCOATED
- Helix Angle: 42 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Neck Diameter: 0.0605in
- Overall Reach: 0.75in
- Reach Multiple: 12X
- Application
- Item Features
- Standards
For off-center contour milling applications
- Variable helix design (approx. 42) improves performance in off-center contour milling applications
- Reduced neck diameter to avoid heeling
- Ball end for profiling
- H6 shank tolerance for high precision tool holders
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.7500 in (3/4)
- Reach Multiple (12x)
- Profile Ball
