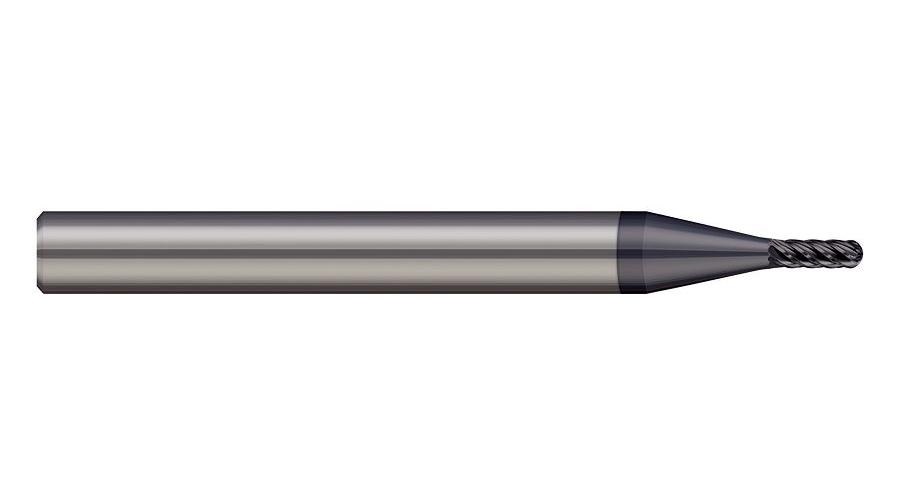

.062 BALL END MILL HARD 3xLOC 6FL Nano
.062 BALL END MILL HARD 3xLOC 6FL Nano
HATL843462-C6
843462-C6
52.30
/ EA
http://schema.org/OutOfStock
/Product/HATL843462-C6
- Cutter Diameter Decimal Inch: 0.062
- Cutter Diameter Fractional Inch: 1/16
- Cutter Diameter Metric: 1.575
- Type: Center Cut
- Number of Flutes: 6
- Length of Cut Decimal Inch: 0.186
- Length of Cut Metric: 4.724
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN Nano, C6
- Helix Angle: 36 deg
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Shank Type: Cylindrical
- Center Cutting: No
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Upcut
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Harvey Tool
- Single or Double End: Single
- Weldon Flat: No
- Application
- Item Features
- Standards
Excellent for stainless steel, inconel, titanium and other high temperature alloys
- Designed to mill hardened tool, die, and mold steels up to 55Rc
- Ball profile for maximum strength
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Increased shank diameter to maintain strength and stiffness h6 shank tolerance for high precision tool holders
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
