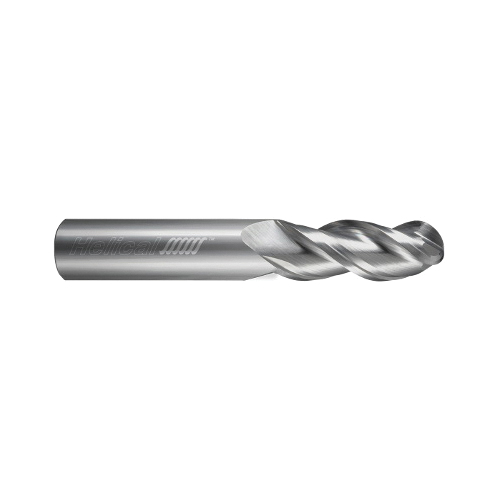

.010" 3FL 15X LR STUB FL BALL END MILL

.010" 3FL 15X LR STUB FL BALL END MILL

HATL49210 49210
84.00 / EA
http://schema.org/OutOfStock
.010 STB FL 15x RCH SC Ball
  • Cutter Diameter Decimal Inch: 0.375
  • Cutter Diameter Fractional Inch: 3/8
  • Cutter Diameter Metric: 9.525
  • Type: Center Cut Imperial Variable Pitch
  • Number of Flutes: 3
  • Length of Cut Decimal Inch: 1
  • Length of Cut Fractional Inch: 1
  • Length of Cut Metric: 25.4
  • Overall Length Decimal Inch: 2.5
  • Overall Length Fractional Inch: 2-1/2
  • Overall Length Metric: 63.5
  • Material: Carbide
  • Surface Treatment: UNCOATED
  • Helix Angle: 40°
  • Shank Diameter Decimal Inch: 0.375
  • Shank Diameter Fractional Inch: 3/8
  • Series: H40ALV-3
  • Flute Type: Spiral
  • Has Attributes: Yes
  • Has Image: Yes
One of the H40ALV-3's 3 flutes contains a wiper flat, designed to swiftly remove scallop marks on the floor of a part to leave a superior finish in aluminum and non-ferrous alloys. This feature is included on all square profiles and where the tool's corner radius does not exceed 20% of the cutter diameter.
QTY
Add to List
  • Application
  • Item Features
Finishing and Ramping Applications
  • Unique 3 teeth to center end geometry for ramping applications
  • Excellent performance in high efficiency milling (HEM)
  • h6 shank tolerance for high precision tool holders
  • Uncoated tool offers an excellent option for aluminum finishing applications
