KYOCERA PRECISION TOOLS

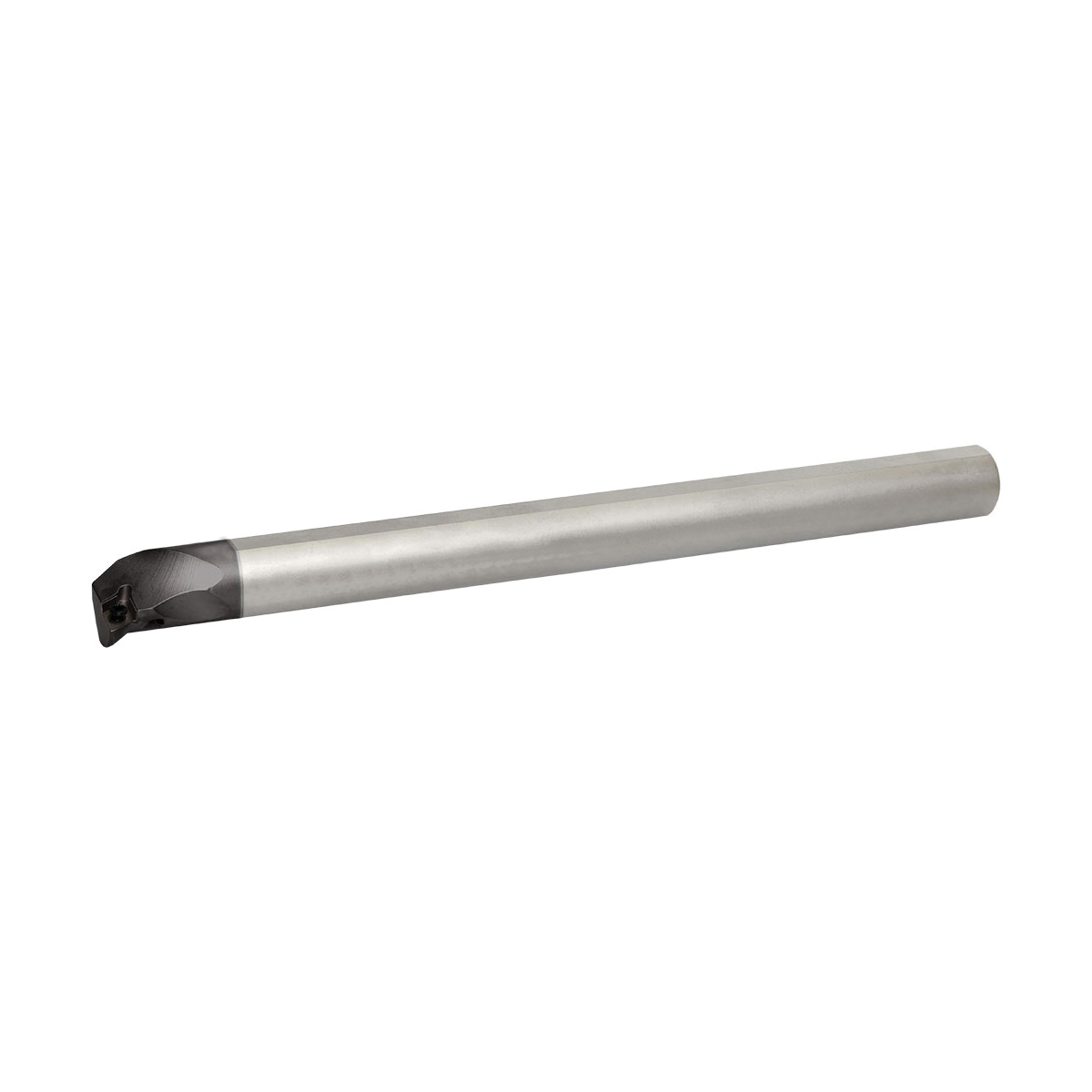

E08QSDUCR2A BORING BAR

E08QSDUCR2A BORING BAR

KYOCTHC89069 THC89069
497.08 / EA
http://schema.org/OutOfStock
E08QSDUCR2A BORING BAR
  • Country of Origin: US|JP|CN|KR
  • Hand of Holder: Right Hand
  • Inscribed Circle: 1/4in
  • Insert Shape: 55° Diamond
  • Insert Style: DCGT215…/DCMX215…/DCMT215…/DCET215…/DCMW215…
  • Insert Thickness: 0.0938in
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide/Steel
  • Maximum Bore Depth: 0.894in
  • Minimum Bore Diameter: 0.63in
  • Overall Length Decimal Inch: 7.1
  • Overall Length Metric: 180.34
  • Series: DYNB
  • Shank Diameter Decimal Inch: 0.5
  • Shank Diameter Fractional Inch: 1/2
  • Shank Type: Round
  • Through Coolant (Yes/No): Yes
  • Toolholder Type: E...SDUC-A
  • Type: Positive Rake
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
Copying Applications
  • Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
  • Large chip pocket provides superior chip evacuation
  • Anti-chatter vibration performance
  • Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
  • 3 (axial), -5 (radial) rake angle dynamic bar coolant-through Boring Bar
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
