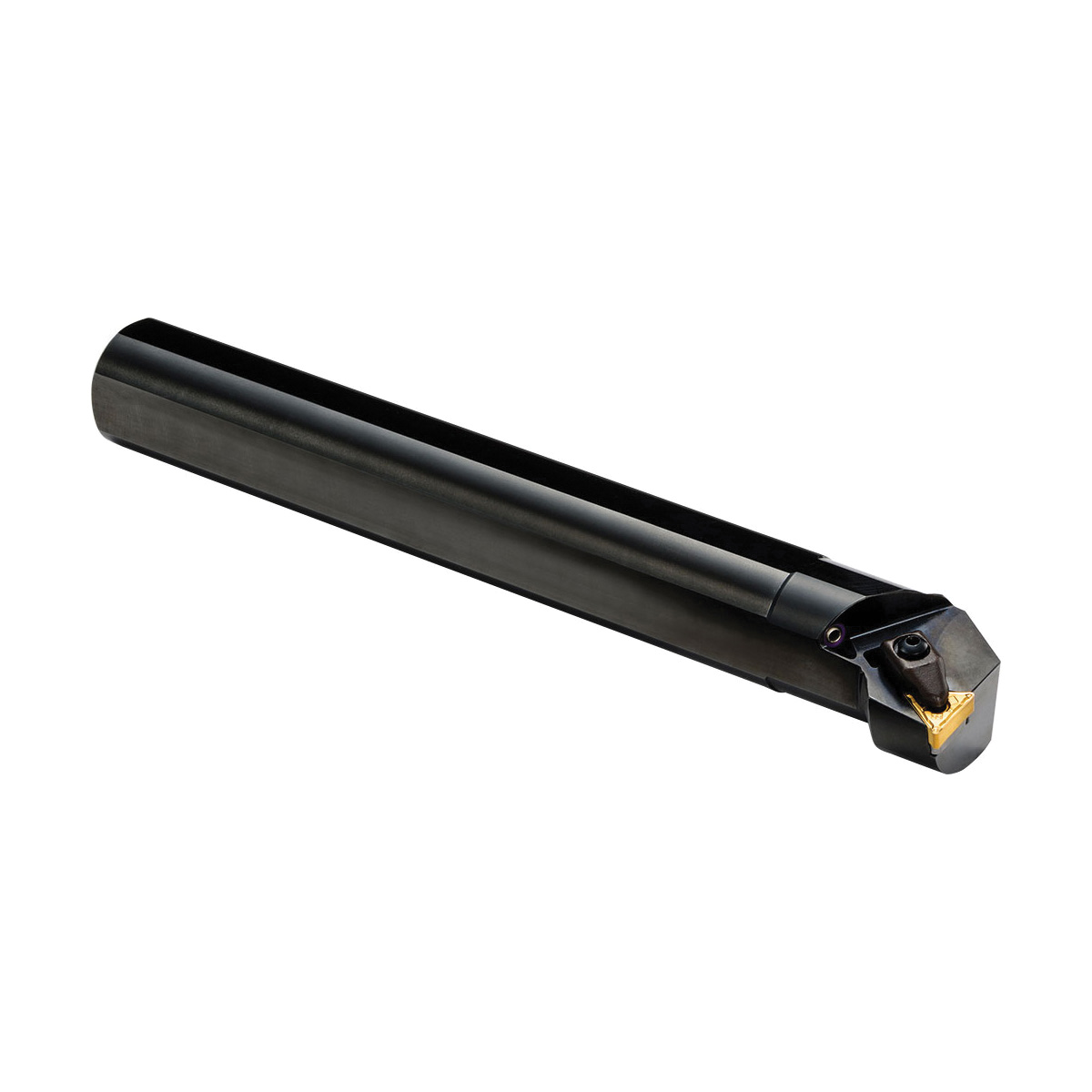

A32SDTFNL1640 BORING BAR

A32SDTFNL1640 BORING BAR

KYOCTHC16085 THC16085
391.39 / EA
http://schema.org/OutOfStock
A32SDTFNL1640 BORING BAR
  • Country of Origin: US|JP|CN|KR
  • Hand of Holder: Left Hand
  • Inscribed Circle: 9.53mm
  • Insert Shape: 60° Triangular
  • Insert Style: TNMG33…/TNMX33…/TNGG33…/TNGA33…/TNMM33…
  • Insert Thickness: 4.76mm
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Steel
  • Maximum Bore Depth: 50mm
  • Minimum Bore Diameter: 40mm
  • Overall Length: 250mm
  • Series: DBCB
  • Shank Diameter: 32mm
  • Shank Type: Round
  • Through Coolant (Yes/No): Yes
  • Toolholder Type: A...DTFN
  • Type: Negative Rake
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring Applications
  • Firmly clamps the insert in two directions with a single action maintaining good contact between the shim and the insert even during high feed rates
  • Adjustable coolant discharge for various applications and insert types
  • Improved insert position accuracy with greater insert life
  • Improved machining stability
  • Increased clamping rigidity
ECCN: EAR99
