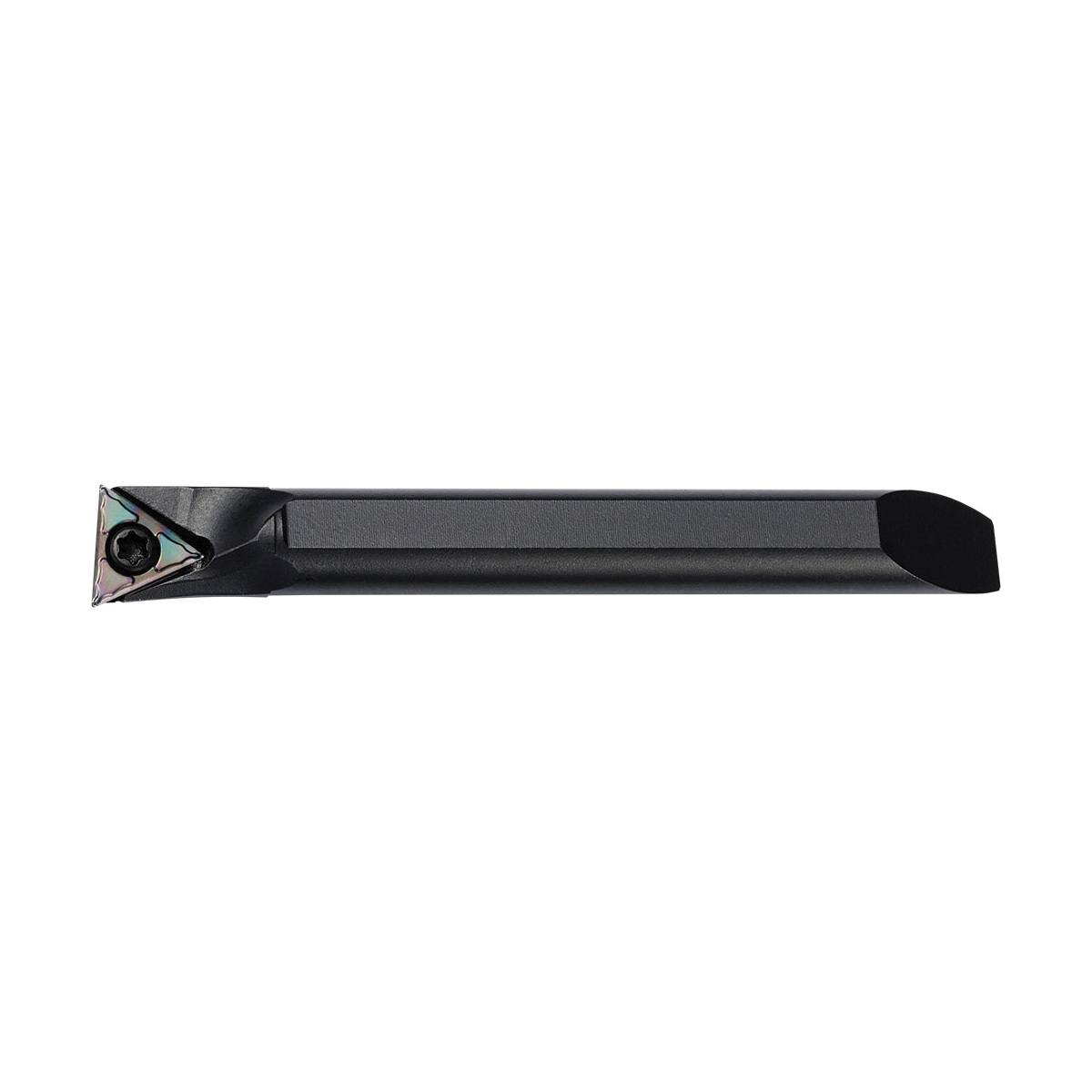

C080XSTLPR09100EZP BORING BAR
C080XSTLPR09100EZP BORING BAR
KYOCTHC14617
THC14617
312.86
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC14617
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Right Hand
- Inscribed Circle: 5.56mm
- Insert Shape: 60° Triangular
- Insert Style: TPGT1815…/TPMT1815…/TPMX1815…/TPEH1815…/TPGH1815…/TPGB1815…/TPMH1815…
- Insert Thickness: 2.38mm
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide/Steel
- Maximum Bore Depth: 14mm
- Minimum Bore Diameter: 10mm
- Overall Length Decimal Inch: 85.5
- Overall Length Fractional Inch: 85-1/2
- Overall Length Metric: 2171.7
- Series: EZB
- Shank Diameter: 8mm
- Shank Type: Round
- Through Coolant (Yes/No): No
- Toolholder Type: C...STLP-EZP
- Type: Positive Rake
- Has Attributes: Yes
- Has Image: Yes
- Shank Diameter Decimal Inch: 0.315
- Shank Diameter Metric: 8
- Application
- Item Features
- Standards
Boring Applications
- Indexable small diameter Boring Bars
- High precision solid bars with the convenience of indexable inserts for reduced machining costs
- The EZ adjust structure features much lower mounting times compared to conventional Boring Bars
- The EZ adjust structure features higher repeatability and accuracy compared with conventional Boring Bars
- 5 (axial), -10 (radial) rake angle EZ bar plus Boring Bar
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
