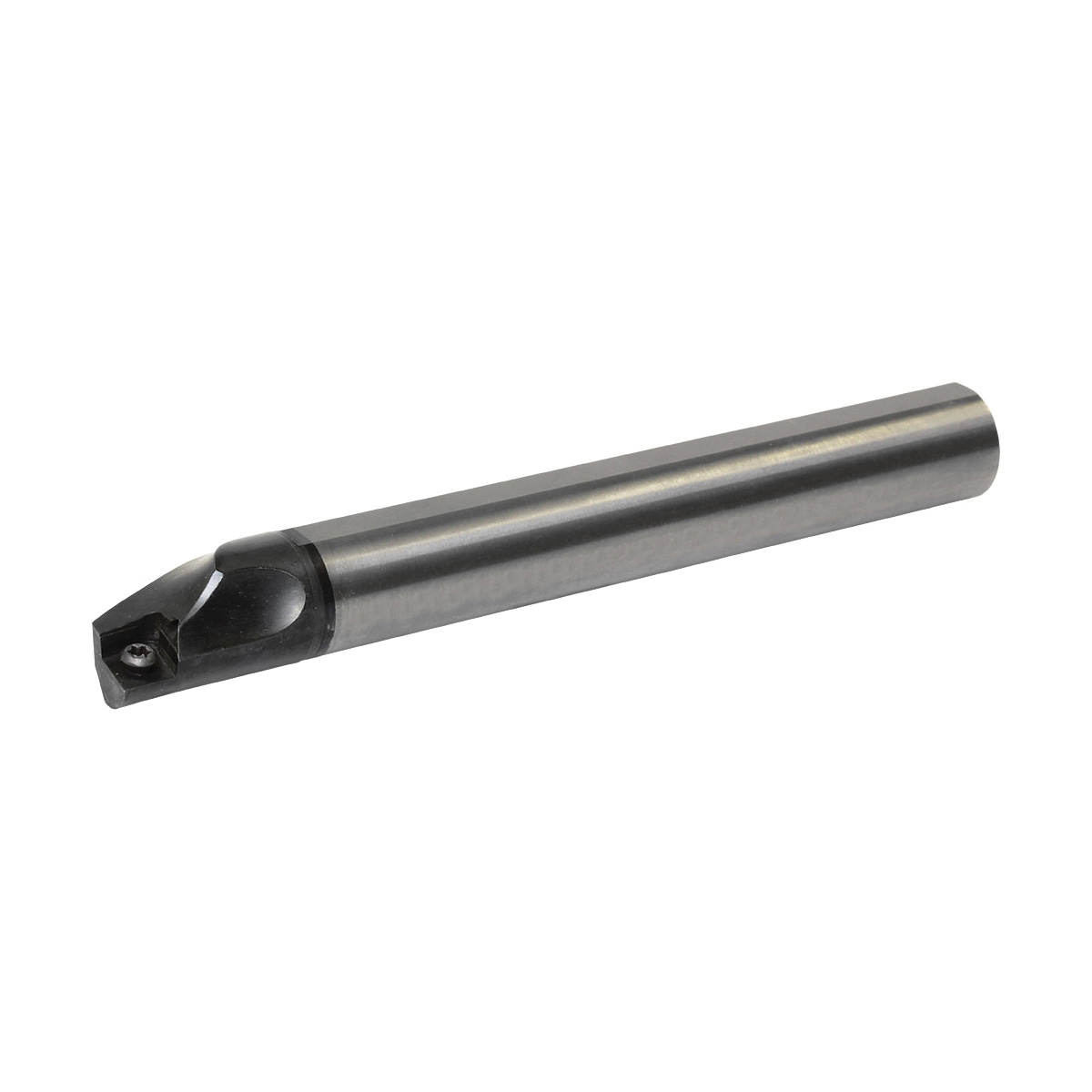

E10NSCLPR0812AN12 BORING BAR
E10NSCLPR0812AN12 BORING BAR
KYOCTHC14579
THC14579
374.65
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC14579
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Right Hand
- Inscribed Circle: 7.94mm
- Insert Shape: 80° Diamond
- Insert Style: CPMT2515…/CPMH2515…/CPMB2515…/CPGB2515…
- Insert Thickness: 2.38mm
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide/Steel
- Maximum Bore Depth: 18mm
- Minimum Bore Diameter: 12mm
- Overall Length Decimal Inch: 80
- Overall Length Metric: 2032
- Series: DYNB
- Shank Diameter Decimal Inch: 0.394
- Shank Diameter Metric: 10
- Shank Type: Round
- Through Coolant (Yes/No): Yes
- Toolholder Type: E...SCLP-AN
- Type: Multi-Use Positive Rake
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Large chip pocket provides superior chip evacuation
- Anti-chatter vibration performance
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- 5 (axial), -5 (radial) rake angle dynamic bar coolant-through Boring Bar
