KYOCERA PRECISION TOOLS

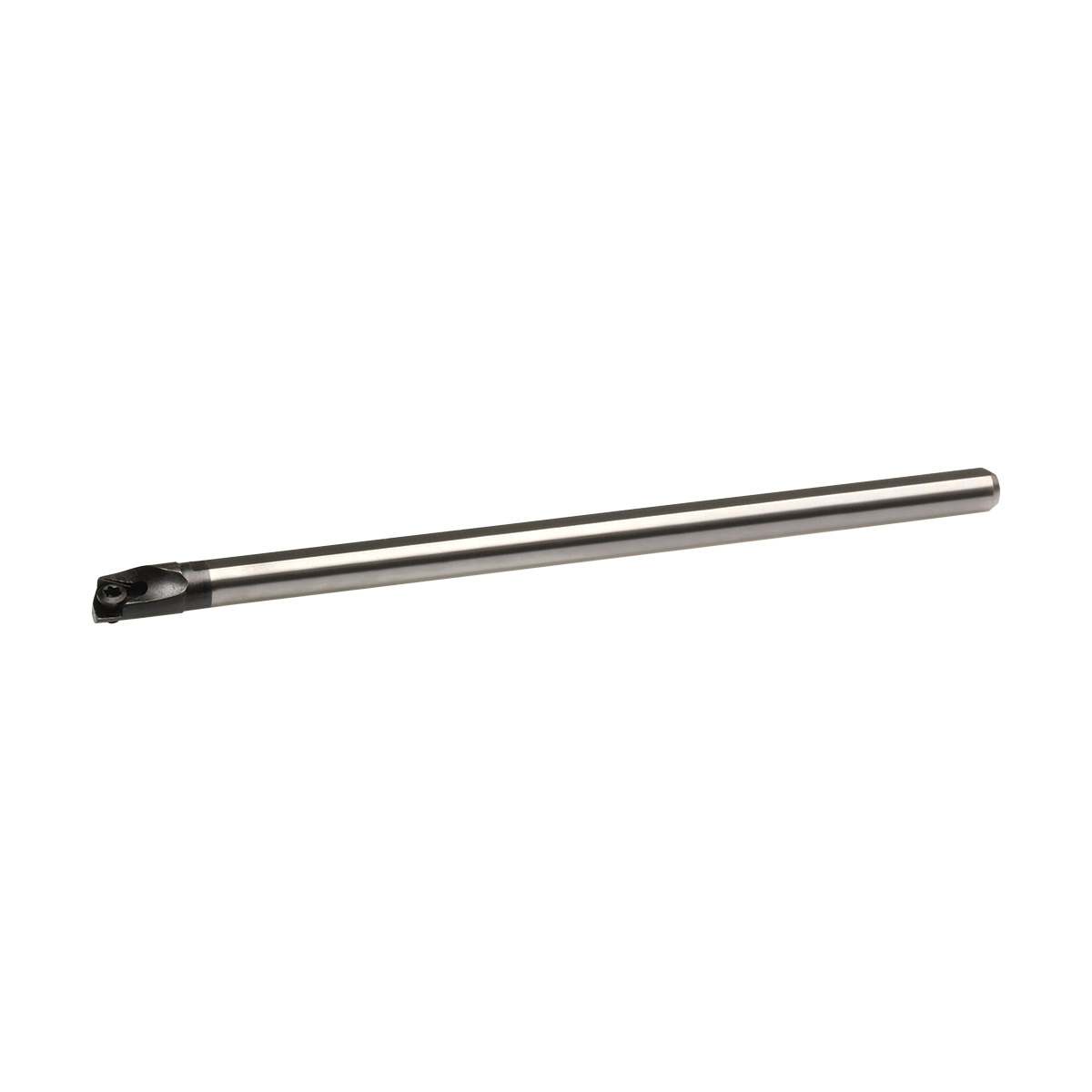

C05HSWUBR0606AN BORING BAR

C05HSWUBR0606AN BORING BAR

KYOCTHC14559 THC14559
346.98 / EA
http://schema.org/OutOfStock
  • Country of Origin: US|JP|CN|KR
  • Hand of Holder: Right Hand
  • Inscribed Circle: 3.97mm
  • Insert Shape: 80° Trigon
  • Insert Style: WBMT121…/WBGT121…/WBGW121…
  • Insert Thickness: 1.59mm
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide/Steel
  • Maximum Bore Depth: 9mm
  • Minimum Bore Diameter: 6mm
  • Overall Length Decimal Inch: 100
  • Overall Length Metric: 2540
  • Series: DYNB
  • Shank Diameter: 5mm
  • Shank Type: Round
  • Through Coolant (Yes/No): No
  • Toolholder Type: C...SWUB-AN
  • Type: Positive Rake
  • Has Attributes: Yes
  • Has Image: Yes
  • Shank Diameter Decimal Inch: 0.197
  • Shank Diameter Metric: 5
QTY
  • Application
  • Item Features
  • Standards
Boring Applications
  • Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
  • Large chip pocket provides superior chip evacuation
  • Anti-chatter vibration performance
  • Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
  • 0 (axial), -15 (radial) rake angle dynamic bar Boring Bar
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
