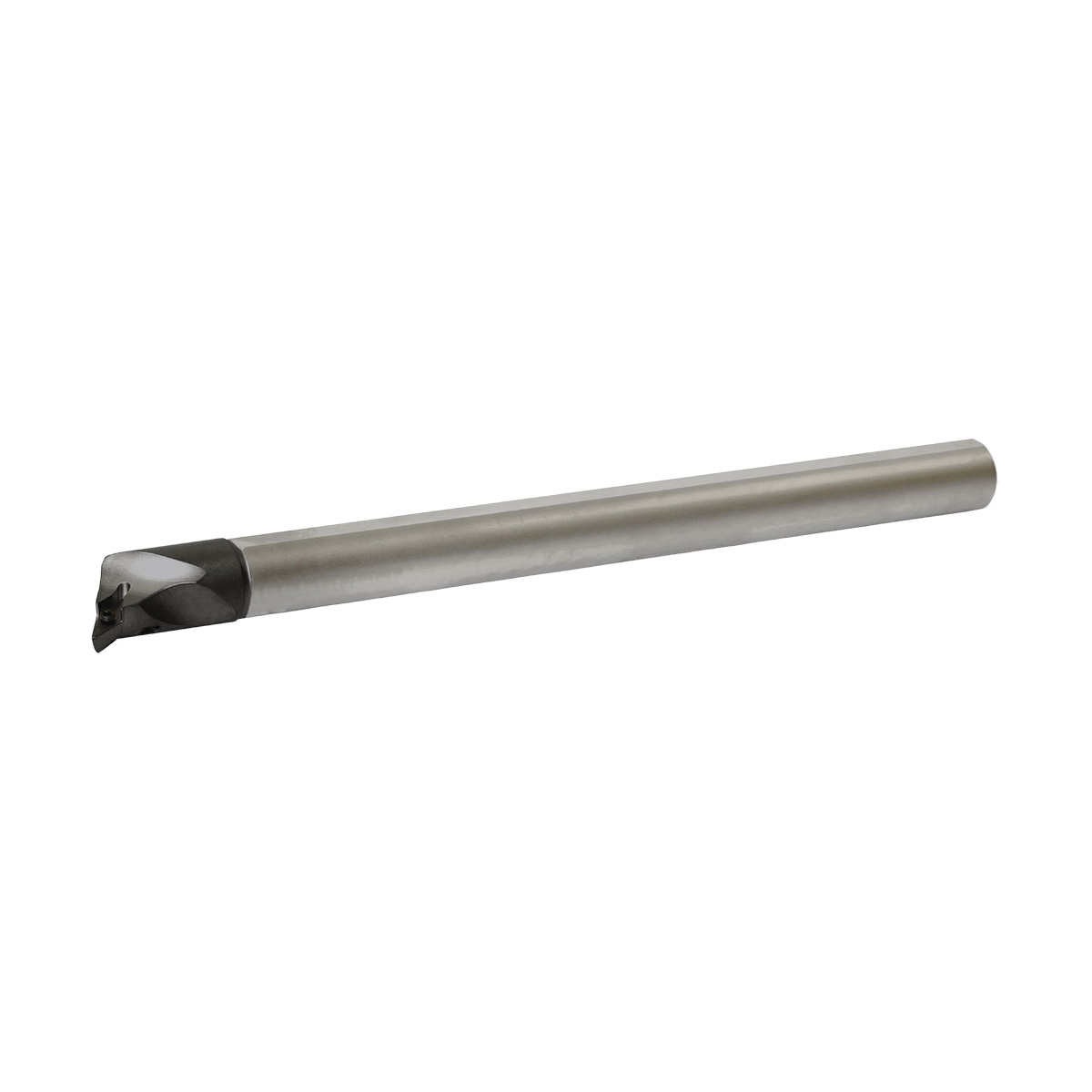

E10NSVPCR0814A BORING BAR

E10NSVPCR0814A BORING BAR

KYOCTHC14200 THC14200
438.56 / EA
http://schema.org/OutOfStock
E10NSVPCR0814A BORING BAR
  • Country of Origin: US|JP|CN|KR
  • Hand of Holder: Right Hand
  • Inscribed Circle: 4.76mm
  • Insert Shape: 35° Diamond
  • Insert Style: VCMT1515…/VCGW1515…
  • Insert Thickness: 2.38mm
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide/Steel
  • Maximum Bore Depth: 20mm
  • Minimum Bore Diameter: 14mm
  • Overall Length Decimal Inch: 160
  • Overall Length Metric: 4064
  • Series: DYNB
  • Shank Diameter Decimal Inch: 0.394
  • Shank Diameter Metric: 10
  • Shank Type: Round
  • Through Coolant (Yes/No): Yes
  • Toolholder Type: E...SVPC-A
  • Type: Multi-Use Positive Rake
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
Copying and Undercutting Applications
  • Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
  • Large chip pocket provides superior chip evacuation
  • Anti-chatter vibration performance
  • Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
  • 5 (axial), -8 (radial) rake angle dynamic bar coolant-through Boring Bar
