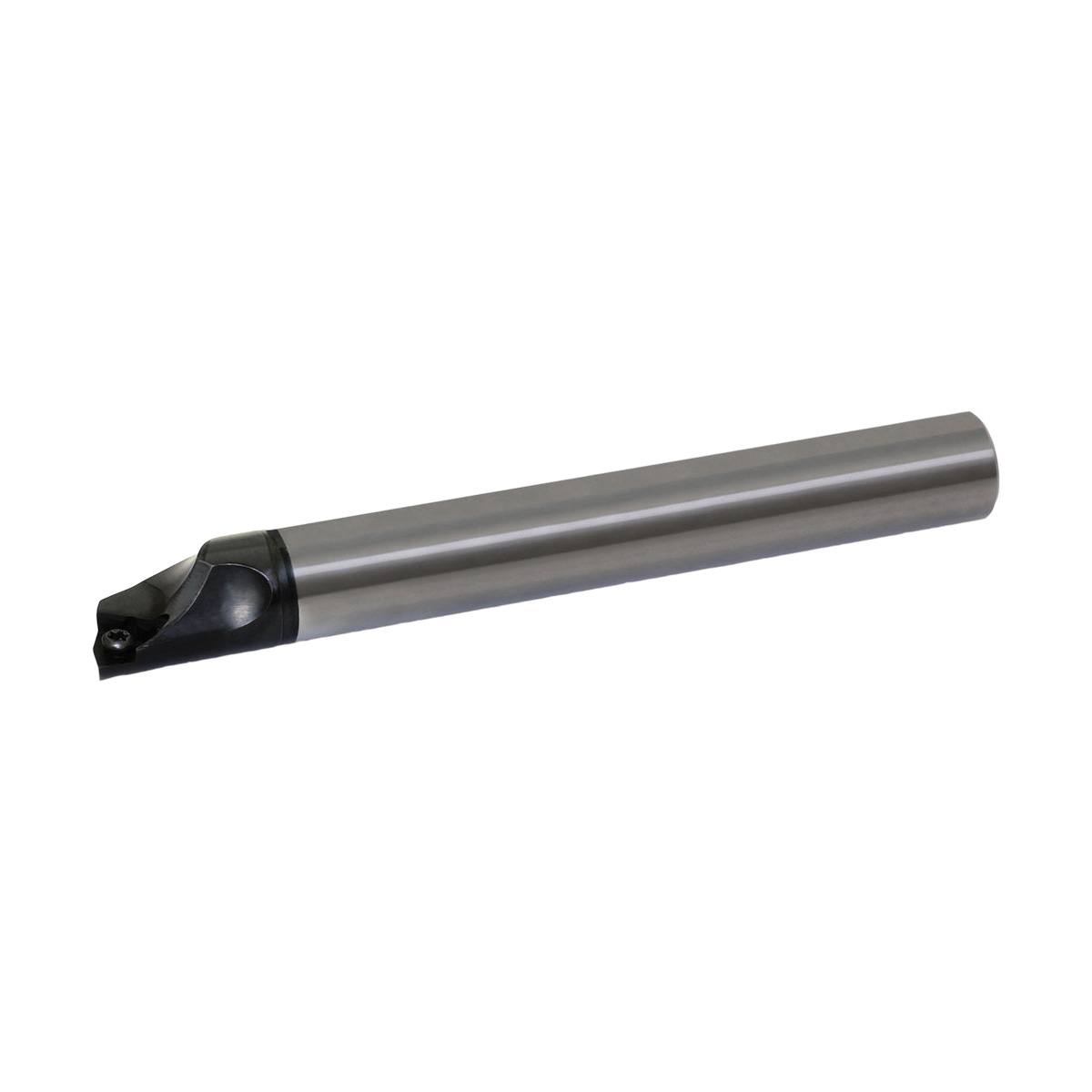

E12QSWUPR1114A23 RH BORING BAR
E12QSWUPR1114A23 RH BORING BAR
KYOCTHC13798
THC13798
442.80
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC13798
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Right Hand
- Inscribed Circle: 6.35 mm
- Insert Shape: 80 deg Trigon
- Insert Style: WPMT215…/WPGW215…
- Insert Thickness: 2.38 mm
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide/Steel
- Maximum Bore Depth: 23 mm
- Minimum Bore Diameter: 14 mm
- Overall Length Decimal Inch: 120
- Overall Length Metric: 3048
- Series: DYNB
- Shank Diameter Decimal Inch: 0.472
- Shank Diameter Metric: 12
- Shank Type: Round
- Through Coolant (Yes/No): Yes
- Toolholder Type: E...SWUP-A
- Type: Positive Rake
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
Boring Applications
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Large chip pocket provides superior chip evacuation
- Anti-chatter vibration performance
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- 5 (axial), -4 (radial) rake angle dynamic bar coolant-through Boring Bar
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
