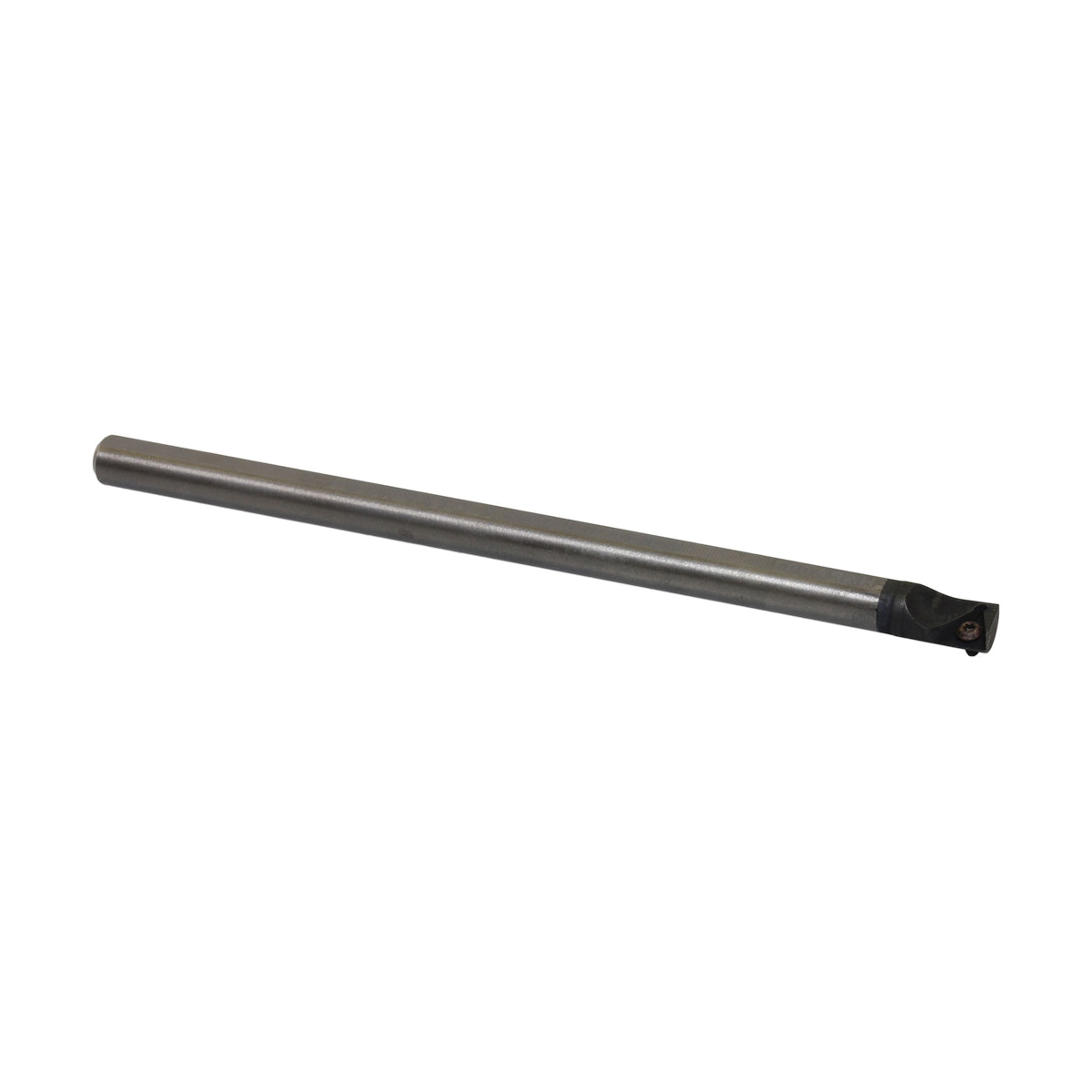

C08XSTXPL0809 BORING BAR
C08XSTXPL0809 BORING BAR
KYOCTHC08350
THC08350
465.63
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC08350
- Country of Origin: US|JP|CN|KR
- Hand of Holder: Left Hand
- Inscribed Circle: 4.76mm
- Insert Shape: 60° Triangular
- Insert Style: TPGT1515…/TPGH1515…/TPET1515…/TPGB1515…/TPMH1515…
- Insert Thickness: 2.38mm
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide/Steel
- Maximum Bore Depth: 14mm
- Minimum Bore Diameter: 9mm
- Overall Length Decimal Inch: 143
- Overall Length Metric: 3632.2
- Series: GPBB
- Shank Diameter: 8mm
- Shank Type: Round
- Through Coolant (Yes/No): No
- Toolholder Type: C...STXP
- Type: Multi-Use Positive Rake
- Has Attributes: Yes
- Has Image: Yes
- Shank Diameter Decimal Inch: 0.315
- Shank Diameter Metric: 8
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- 5 (axial), -10 (radial) rake angle general purpose Boring Bar
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
