SIR-S 2532 S 22-A BORING BAR - THREADING
SIR-S 2532 S 22-A BORING BAR - THREADING
PRA6757419
6757419
262.66
/ EA
http://schema.org/OutOfStock
/Product/PRA6757419
- ANSI Code: SIR-S 2532 S 22-A
- Back of Bar to Cutting Edge: 12.5mm
- Hand of Holder: Right
- Insert Holding Method: Screw
- Overall Length: 250mm
- Series: SI-S
- Shank Height: 25mm
- Thread Type: Internal
- Tool Holder Style: SIR-S
- Type: Standard
- Shank Width: 30mm
- Has Attributes: Yes
- Has Image: Yes
- Insert Style: TN 22NN..

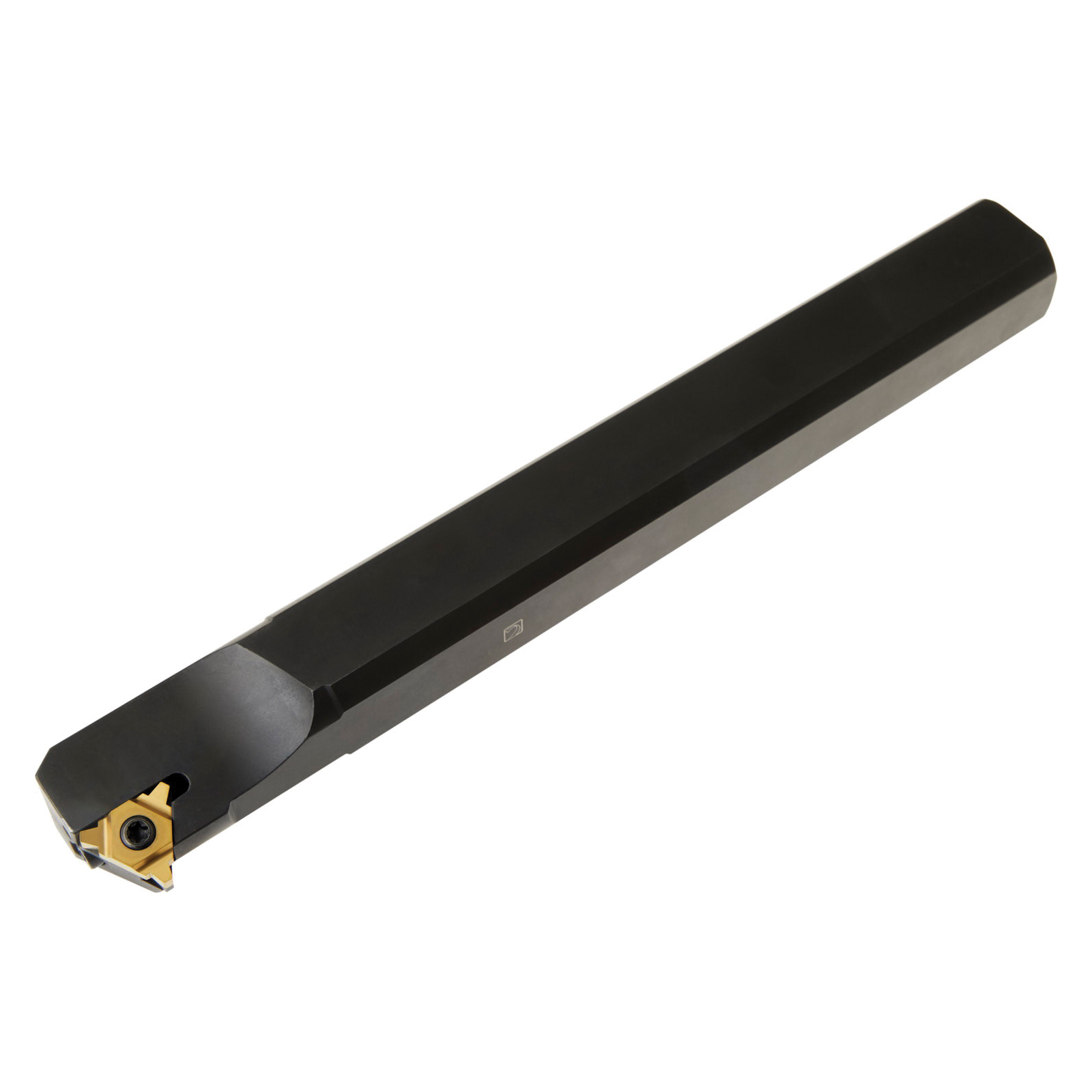

Screw clamp thread turning bar with 1.5 deg helix angle for holding a triangle shaped insert with an inscribed circle diameter of 12.7 mm (designation TN 22NN.. ), right hand special design with straight shank made of steel without coolant hole, 32 mm diameter and 250 mm overall length for internal threading.
- Application
- Item Features
- Standards
For internal threading applications
- Finishing - very good surface quality
- Without through coolant
PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
