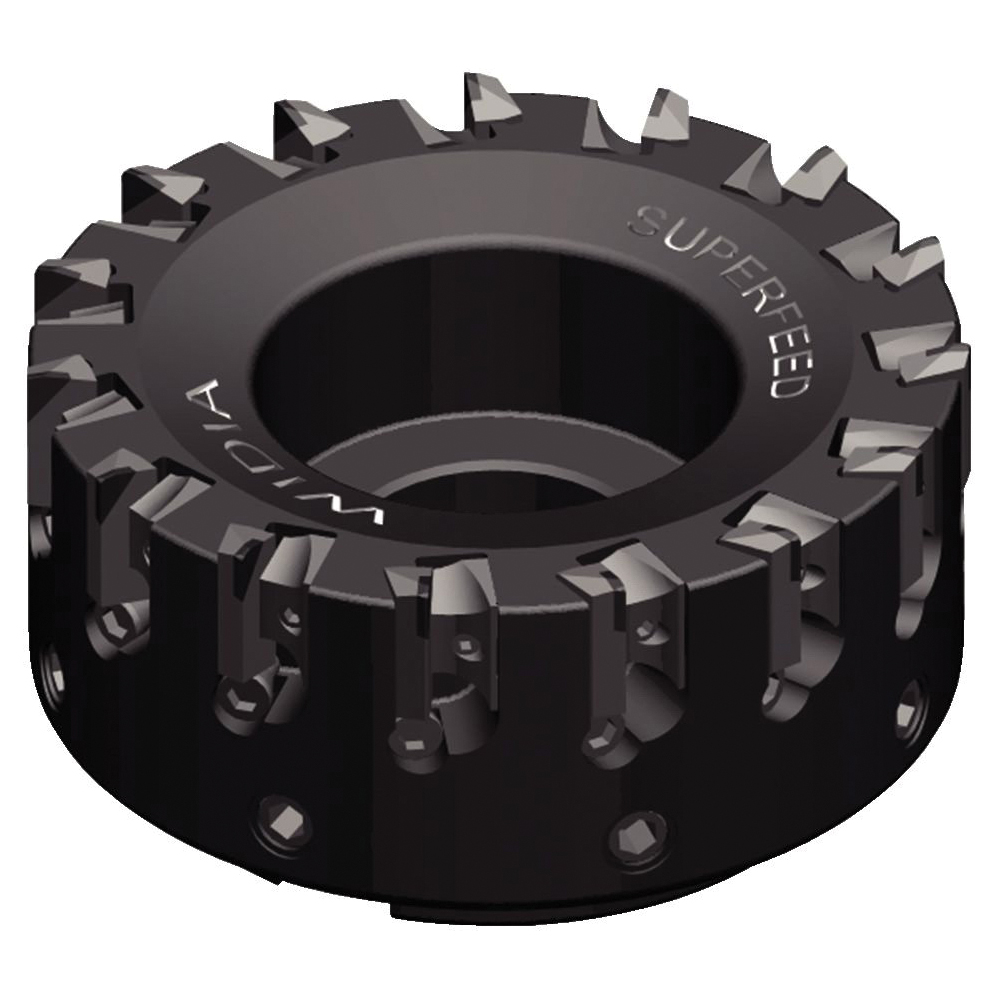

SUPER FEED FACE MILL D=200 Z=24
SUPER FEED FACE MILL D=200 Z=24
WIDA5363223
5363223
2786.78
/ EA
http://schema.org/OutOfStock
/Product/WIDA5363223
- ANSI Code: SF20024RH W
- Country of Origin: US
- Cutter Diameter Decimal Inch: 7.874
- Cutter Diameter Fractional Inch: 7-7/8
- Cutter Diameter Metric: 200
- Insert Style: SDR100031
- ISO Code: SF20024RH W
- Manufacturer Name: WIDIA
- Material: Non-Ferrous Metal
- Number of Inserts: 24
- Overall Length Decimal Inch: 63
- Overall Length Metric: 1600.2
- Series: SuperFeed™
- Shank Diameter Decimal Inch: 2.363
- Shank Diameter Metric: 60.013
- Through Coolant (Yes/No): Yes
- Maximum Depth of Cut Decimal Inch: 0.25
- Maximum Depth of Cut Fractional Inch: 1/4
- Maximum Depth of Cut Metric: 6.35
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Item Features
- Through coolant capability
- +/-3 um axial adjustment range
- Balanced design
- Easy setup in a simple system design
- Modified standards available
