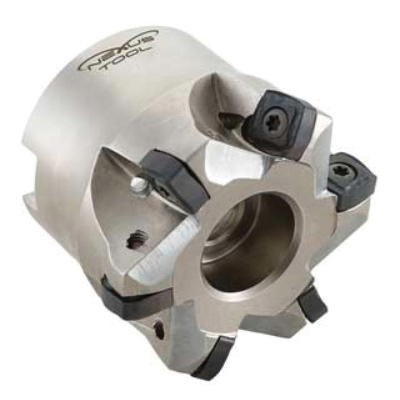

SHF-2.00-.750C-4SN9 (2"-CT)
SHF-2.00-.750C-4SN9 (2"-CT)
TEC9223123
9223123
373.00
/ EA
http://schema.org/OutOfStock
/Product/TEC9223123
- ANSI Code: SHF-2.00-.750C-4SN9
- Arbor Hole Diameter: 3/4in
- Country of Origin: TW
- Cutter Diameter Decimal Inch: 2
- Cutter Diameter Fractional Inch: 2
- Cutter Diameter Metric: 50.8
- Head Length: 1.57in
- Insert Gage Screw: 6811264
- Insert Style: SNKX, SNKX09T3
- Manufacturer Name: TECHNIKS INDUSTRIES
- Material: H13 Tool Steel
- Number of Inserts: 4
- Overall Length Decimal Inch: 1.57
- Overall Length Metric: 39.878
- Series: ShrinkMILL
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Through Coolant (Yes/No): Yes
- Type: High Feed Negative
- Has Attributes: Yes
- Has Image: Yes
- Surface Treatment: Electroless Nickel Plated
- Application
- Item Features
Plunge Milling Profile and Copy Milling
- H6 bore tolerance is 38% more accurate than standard face mills
- Internal coolant directed at each cutting edge
- Made from H13 tool steel and electroless nickel coated for long life
- Great for roughing operations on pockets and 3D surfaces
- 8 cutting edges per insert increases productivity
- Longer insert life and increased parts per insert
- Excellent for dry machining of molds and dies
- Longer insert life for increased machine up time
