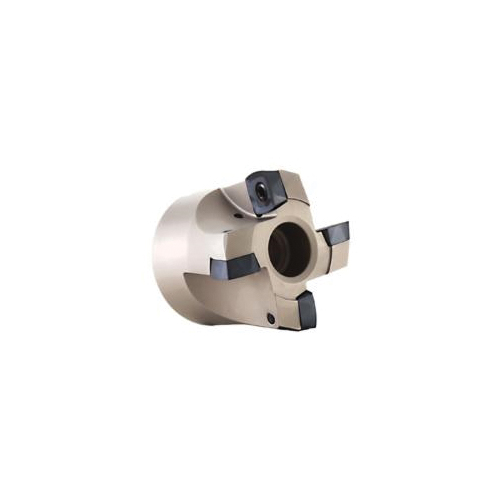

SDHF2.50-.750C-5-12
SDHF2.50-.750C-5-12
TEC2928825
2928825
416.00
/ EA
http://schema.org/OutOfStock
/Product/TEC2928825
- ANSI Code: SDHF.250-7.50C-5-12
- Cutter Diameter Decimal Inch: 2.5
- Cutter Diameter Fractional Inch: 2-1/2
- Cutter Diameter Metric: 63.5
- Insert Gage Screw: 9319347
- Insert Style: SDKX 1204
- Manufacturer Name: TECHNIKS INDUSTRIES
- Material: H13 Tool Steel
- Number of Inserts: 5
- Overall Length Decimal Inch: 1.574
- Overall Length Metric: 39.98
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Type: High Feed Positive
- Maximum Depth of Cut Decimal Inch: 0.098
- Has Attributes: Yes
- Has Image: Yes
- Surface Treatment: Electroless Nickel Plated
- Application
- Item Features
Facing, Plunging, Ramping and Pocket Milling Applications
- H6 bore tolerance is 38% more accurate than standard face mills
- Internal coolant directed at each cutting edge
- Positive insert clearance provides excellent helical ramping capabilities
- Made from H13 tool steel and electroless nickel coated for long life
- Achieve higher feed rates in steel, stainless steel, cast iron, hard steel, high-temp alloys and aluminum
