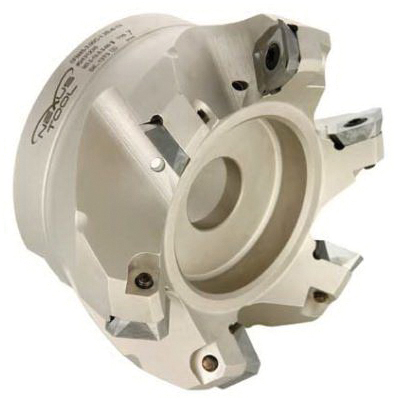

SFM45-3.00C-1.25-6-13 (3"-CT)
SFM45-3.00C-1.25-6-13 (3"-CT)
TEC2431235
2431235
503.00
/ EA
http://schema.org/OutOfStock
/Product/TEC2431235
- ANSI Code: SFM45-3.00C-1.25-6-13
- Arbor Hole Diameter: 1-1/4in
- Country of Origin: TW
- Cutting Angle: 45°
- Head Length: 1.97in
- Insert Gage Screw: 9318345
- Insert Style: SE_ _12T3/13T3, SEKT/SEET
- Manufacturer Name: TECHNIKS INDUSTRIES
- Material: H13 Tool Steel
- Number of Inserts: 6
- Overall Length Decimal Inch: 1.97
- Overall Length Metric: 50.038
- Series: ShrinkMILL
- Through Coolant (Yes/No): Yes
- Has Attributes: Yes
- Has Image: Yes
- Surface Treatment: Electroless Nickel Plated
- Application
- Item Features
Facing, Plunging, Ramping and Pocket Milling
- The holding power and rigidity of ShrinkFIT applied to a face mill
- Longer tool life or increased feed rates
- Better surface finish due to increased rigidity
- ShrinkMILL bore tolerance creates a nearly perfect connection between arbor and face mill
- Coolant through ready with coolant arbor screw
